Water Pump Compatible With Forklift 4Fg 1.0-2.5T 5P 2.8L Gasoline 4Fd 2J 2.5L Diesel 2Fd 3Fd 5Fd 2Fg

OEM PART NUMBERS:
• Toyota: 16120-10940-71 / 161201094071
• Toyota: 16120-10941-71 / 161201094171
• Toyota: 16120-78101-71 / 161207810171
• Toyota: 16100-78101-71 / 161007810171
• Toyota: 16115-10940-71 / 161151094071
• Toyota: 16120-96101-71 / 161209610171
• Toyota: 16131-78101-71 / 161317810171
• Toyota: 16131-10940-71 / 161311094071
• Toyota: 16131-10990-71 / 161311099071
• Toyota: 16120-96101 / 1612096101
• Toyota: 16100-96101 / 1610096101
• Toyota: 16131-96101 / 1613196101

SPECIFICATIONS:
• Mounting: 6-Bolt Pattern
• Height: 4.39" (112mm)
• Length: 4.37" (111mm)
• Gaskets: Included
• Condition: New

APPLICATION:
• Toyota 4FG / 2FG / 3FG Forklift - 5P Gasoline
• Toyota 4FD / 2FD / 3FD / 5FD Forklift - 2J Diesel

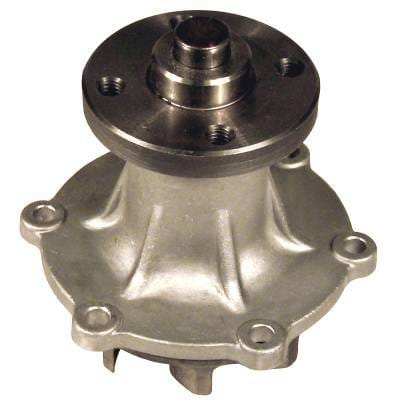

Water Pump - Forklift 4FG 5P Gasoline / 4FD 2J Diesel Engine
New water pump for Toyota forklifts equipped with the 5P 2.8-liter (2,771cc) inline four-cylinder gasoline engine and the 2J 2.5-liter (2,481cc) inline four-cylinder diesel engine. Fits the Toyota 4FG forklift series (1.0 to 2.5 ton capacity) with the 5P gasoline engine, and the 4FD series (1.0 to 2.5 ton) with the 2J diesel engine. Also compatible with Toyota 2FD, 3FD, and 5FD diesel forklifts and 2FG and 3FG gasoline forklifts using these same engine platforms. 6-bolt mounting pattern with gaskets included for a complete ready-to-install package. Pump dimensions: 4.39 inches (112mm) height and 4.37 inches (111mm) length. Both the 5P and 2J are pushrod OHV designs with cast iron blocks, engineered for the continuous duty cycles of industrial material handling applications. Replaces Toyota 16120-10940-71 and all related cross-reference part numbers.

⚠️ Verify OEM part number from your original unit before ordering to ensure proper fitment.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Nickel which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
TOYOTA FORKLIFTS (5P GASOLINE ENGINE):
• 4FG (1.0-2.5 Ton) - Toyota 5P 2.8L Gasoline
• 2FG / 3FG Series - Toyota 5P 2.8L Gasoline

TOYOTA FORKLIFTS (2J DIESEL ENGINE):
• 4FD (1.0-2.5 Ton) - Toyota 2J 2.5L Diesel
• 2FD / 3FD / 5FD Series - Toyota 2J 2.5L Diesel

ENGINE SPECIFICATIONS:
• 5P: 2.8L (2,771cc) Inline-4 OHV Gasoline, 93mm Bore
• 2J: 2.5L (2,481cc) Inline-4 OHV 8-Valve Diesel, 88mm Bore x 96mm Stroke
• Both: Pushrod OHV Design, Cast Iron Block

WATER PUMP SPECIFICATIONS:
• Mounting: 6-Bolt Pattern
• Height: 4.39" (112mm)
• Length: 4.37" (111mm)
• Gaskets: Included

NOTE: Verify OEM part number before ordering.
