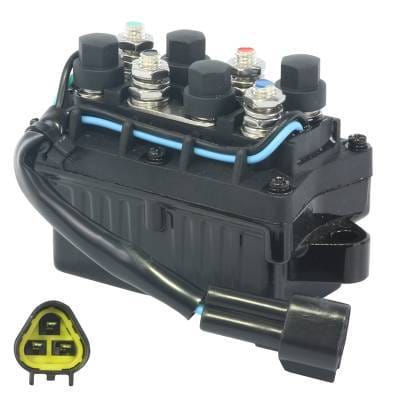

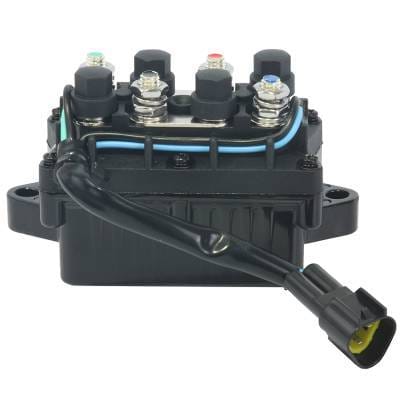

Tilt Trim Relay Compatible With Yamaha 60Hp 2-Stroke 1995-2007 25Hp 1994-1995 F20 F25 Ft25 F45

OEM PART NUMBERS:
• Yamaha: 61A-81950-00-00 / 61A819500000
• Yamaha: 61A-81950-01-00 / 61A819500100 (Superseded)

SPECIFICATIONS:
• Type: Power Trim and Tilt Relay Assembly
• Voltage: 12V
• Plug Type: 3-Pin
• Weight: 1.1 lbs
• HP Range: 25-250HP
• Engine Types: 2-Stroke & 4-Stroke
• Year Range: 1990-2009
• Condition: New

YAMAHA OUTBOARD APPLICATIONS:
• 2-Stroke: 25HP (1994-1995), 60HP (1995-2007), 70HP (1993-2009)
• 2-Stroke: 75HP (1993-2016), 80HP (1993-2005), 85HP (1993-2010), 90HP (1993-2009)
• 2-Stroke: 150HP (1999-2005), 200HP (1998-2005), 225HP (1990-2004), 250HP (1990-2004)
• 4-Stroke: F-25/F-40 (2009), F-50/F-60/F-75/F-90 (2005-2009)
• 4-Stroke: F-150 (2004-2009), F-225 TLR (2007-2009), F-250 (2005-2009)
• OX66 VMAX: 150/200/225/250HP (1990-2005)PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
YAMAHA 2-STROKE OUTBOARD MOTORS (25-250HP):
• 25HP 2-Stroke (1994-1995)
• 60HP 2-Stroke (1995-2007)
• 70HP 2-Stroke (1993-2009)
• 75HP 2-Stroke (1993-2002) / 75C (1998-2016)
• 80HP 2-Stroke (1993-2005)
• 85HP 2-Stroke (1993-2010)
• 90HP 2-Stroke (1993-2009)
• 150HP 2-Stroke (1999-2005) / D150 (1999-2005) / L150 (1999-2003)
• 200HP 2-Stroke (1998-2005) / L200 (1999-2001) / SX200 / VX200
• 225HP 2-Stroke (1990-2004) / L225 (1994-2003) / SX225 / VX225 / V225 / VMAX OX66
• 250HP 2-Stroke (1990-2004) / L250 (1990-2003) / VX250 / S250 / VMAX OX66

YAMAHA 4-STROKE OUTBOARD MOTORS:
• F-25HP 4-Stroke (2009)
• F-40HP 4-Stroke (2009)
• F-50HP 4-Stroke (2005-2009)
• F-60HP 4-Stroke (2005-2009)
• F-75HP 4-Stroke (2005-2009)
• F-90HP 4-Stroke (2005-2009)
• F-150HP 4-Stroke (2004-2009)
• F-225HP TLR 4-Stroke (2007-2009)
• F-250HP 4-Stroke (2005-2009)

ADDITIONAL 2-STROKE / 4-STROKE MODELS:
• F20HP 4-Stroke (1998-1999, 2004-2007)
• F25HP 4-Stroke (1998-2005) / FT25HP (2000-2009)
• F45HP 4-Stroke (1999)
• C75TLR / P75TLH / E75B (1994-2002)
• C80A (1997) / C85TLR (1993-1996) / C90 (1997-2001)
• SX150 / VX150TLR / PX150 (1999-2004)
• V200 / SX200 / VX200 (1998-2005)
• V225 / S225 / SX225 / VX225 / 225 OX66 VMAX (1990-2005)
• 250G / S250 / VX250C / L250 / 250 OX66 VMAX (1990-2010)
