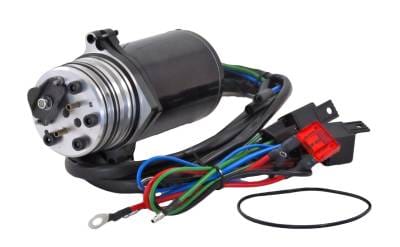

Tilt Trim Motor Pump Conversion Kit Compatible With Mercury Mariner 35-225Hp Outboard Replaces Eaton

OEM PART NUMBERS:
• Mercury Marine: 99186 / 991861 / 99186-1 / 99186T
• Mercury Marine: 826729A10 / 99189
• Mercury Marine: 818186A6
• Mercury Marine: 99659 / 99659A
• Mercury Marine: 99659A21 / 99659A22
• Mercury Marine: 99659A40 / 99659A45



AFTERMARKET CROSS REFERENCE:
• API Marine: PT475TN
• Arco Marine: 6278
• 18-6273-1
SPECIFICATIONS:
• Type: Tilt Trim Motor & Cartridge Pump Conversion Kit
• Voltage: 12V DC
• Rotation: Reversible
• Connection: 2-Wire (Replaces Older 3-Wire)
• Terminals: Spade (x3)
• Field Housing OD: 78mm / 3.071in
• Overall Length: 172mm / 6.772in
• System: Design I, 3-Ram, Side Fill Integral Trim/Tilt
• Replaces: Square Eaton & Round Style Units

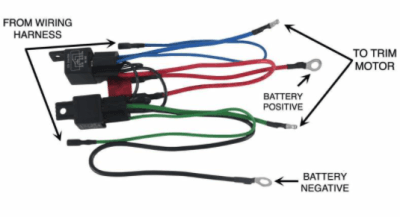

• Includes: Motor, Cartridge Pump, Relay, Wiring Harness, O-Ring
• Weight: 10 lbs
• Condition: New

MERCURY / MARINER APPLICATIONS:
• Mercury/Mariner 35-225HP Outboard (1985-1992)
• All Models with Design I, 3-Ram Trim System
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
MERCURY OUTBOARD APPLICATIONS (1985-1992):
• 35HP / 35EO / 35ELO / 35ELPTO / 35M / 35ML (1987-1992)
• 40HP All Models (1985-1992)
• 45HP / 45ELHO / 45ELO / 45ELPTO / 45MLH / 45ELHPTO (1985-1992)
• 60HP All Models (1985-1992)
• 75HP All Models (1985-1992)
• 80HP All Models (1985-1992)
• 90HP All Models (1985-1992)
• 100HP All Models (1985-1992)
• 115HP All Models (1985-1992)
• 135HP V6 All Models (1985-1992)
• 150HP V6 All Models (1985-1992)
• 175HP V6 All Models (1985-1992)
• 200HP V6 All Models (1985-1992)
• 220HP V6 All Models (1985-1992)
• 225HP V6 All Models (1985-1992)

MARINER OUTBOARD APPLICATIONS (1985-1992):
• All 35-225HP Models with Design I 3-Ram Trim System

SYSTEM TYPE:
• Design I, 3-Ram, Side Fill Integral Trim/Tilt System
• Replaces Square Eaton & Round 3-Wire Units
• Updated 2-Wire Motor with Relay & Harness Conversion Kit
