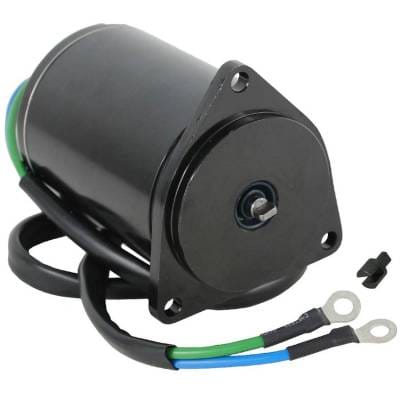

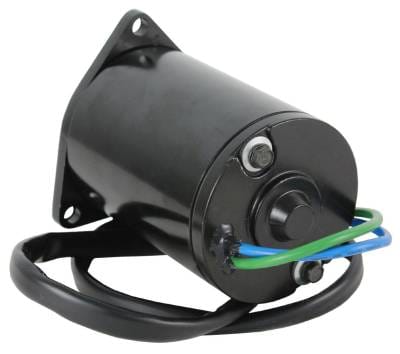

Tilt Trim Motor Compatible With Yamaha C115 C150 L130 L150 L200 P115 P150 P175 P200 S115 S130

OEM PART NUMBERS:
• Yamaha: 6G5-43880-02-00 / 6G54388002 / 6G5438800200
• Yamaha: 6G5-43880-02 / 6G54388002
• Yamaha: 6G5-43880-01 / 6G54388001
• Yamaha: 6G5-43880-00 / 6G54388000
• Quicksilver: 8M6007569



AFTERMARKET CROSS REFERENCE:
• Arco Marine: 6265
• 18-6760
SPECIFICATIONS:
• Type: Tilt Trim Motor (Motor Only)
• Voltage: 12V DC
• Rotation: Reversible
• Connection: 2-Wire Configuration
• Terminals: Ring Terminals (x3)
• Mounting: (3) 6mm Unthreaded Holes
• Shaft OD: 8mm / 0.315in
• Shaft Type: 2.5mm Drive Tang
• Field Housing OD: 64mm / 2.52in
• Overall Length: 130mm / 5.118in
• Includes: O-Rings and Shaft Adaptor
• Weight: 3.29 lbs / 1.5 kg
• Condition: New

YAMAHA APPLICATIONS:
• 115HP / 130HP / 140HP (1986-1996)
• 150HP / 175HP / 200HP (1986-1995)
• 225HP (1990-1995)
• Standard, C-Series, L-Series, P-Series, S-Series Models
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
YAMAHA 115HP 2-STROKE OUTBOARD (1986-1996):
• 115TJR (1992-1996)
• 115TLR (1992-1996)
• 115TXR (1992-1995)
• C115TLR / C115TXR / C115LXR (1992-1996)
• P115TLR (1993-1995)
• S115TLR / S115TXR (1996)

YAMAHA 130HP 2-STROKE OUTBOARD (1986-1996):
• 130TLR / 130TXR (1992-1996)
• L130TXR (1992-1996)
• S130TLR / S130TXR (1996)

YAMAHA 140HP 2-STROKE OUTBOARD (1987-1991):
• All 140HP Models (1987-1991)

YAMAHA 150HP 2-STROKE OUTBOARD (1986-1996):
• 150TJR (1994-1995) / 150TLR / 150TXR (1992-1995)
• L150TXR (1992-1995) / P150TLR (1992-1995)
• C150TLR / C150TXR (1996)

YAMAHA 175HP 2-STROKE OUTBOARD (1986-1995):
• 175TLR / 175TXR (1992-1995)
• P175TLR (1994-1995)

YAMAHA 200HP 2-STROKE OUTBOARD (1986-1995):
• 200TJR / 200TLR / 200TXR (1992-1995)
• L200TXR (1992-1995) / P200TLR (1992-1995)

YAMAHA 225HP 2-STROKE OUTBOARD (1990-1995):
• 225TLR / 225TXR (1992-1995)
• 225TUR (1995)
