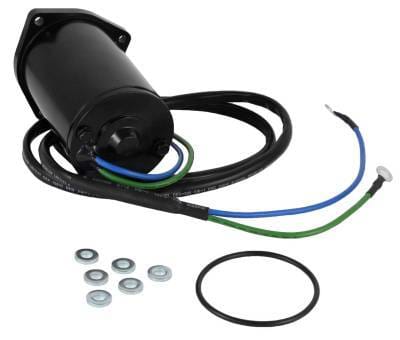

Tilt Trim Motor Compatible With Yamaha 40Hp 50Hp 2-Stroke Outboard 40Ejr 40Elr 40Esr 40Tlr 50Ejr

OEM PART NUMBERS:
• Yamaha: 62X-43880-09 / 62X4388009
• Yamaha: 62X-43880-09-00 / 62X438800900
• Yamaha: 62X-43880-01 / 62X4388001
• Yamaha: 62X-43880-01-00 / 62X438800100
• Yamaha: 62X-43880-00 / 62X4388000
• Yamaha: 62X-43880-00-00 / 62X438800000
• Quicksilver: 8M6007573



AFTERMARKET CROSS REFERENCE:
• API Marine: PT611NM
• Arco Marine: 6266
• 18-6789
SPECIFICATIONS:
• Type: Tilt Trim Motor
• Voltage: 12V DC
• Rotation: Reversible
• Connection: 2-Wire
• Terminals: Ring Terminal Ends
• Mounting: 3-Bolt
• Shaft OD: 7.9mm / 0.311in
• Shaft Type: 4mm x 8mm Drive Tang
• Field Housing OD: 63.6mm / 2.504in
• Overall Length: 120.4mm / 4.74in
• Includes: O-Ring
• Weight: 3.04 lbs / 1.38 kg
• Condition: New

YAMAHA APPLICATIONS (1995-2001):
• 40HP: 40EJR/ELR/ESR, 40MJH/MLH/MSH, 40TLH/TLR, C40TLR, F40TLR, P40TLH
• 50HP: 50EJR/ELR/TLH/TLR, C50TLR, F50TLR/TLH, T50TLR, P50TLR
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
YAMAHA 40HP 2-STROKE OUTBOARD (1995-2001):
• 40EJR (1995-1999)
• 40ELR (1995-1998)
• 40ESR (1995-1999)
• 40MJH (1995-2000)
• 40MLH (1995-2000)
• 40MSH (1995-1999)
• 40TLH (1996-1997)
• 40TLR (1995-2000)
• C40TLR (1997-2001)
• F40TLR (1999)
• P40TLH (1995-1998)

YAMAHA 50HP 2-STROKE OUTBOARD (1995-2001):
• 50EJR (1995-1999)
• 50ELR (1995)
• 50TLH (1995-1997)
• 50TLR (1996-1997)
• C50TLR (1998-2001)
• F50TLR (1996-1999)
• F50TLH (1997)
• T50TLR (1996-1999)
• P50TLR (1995-1996)
