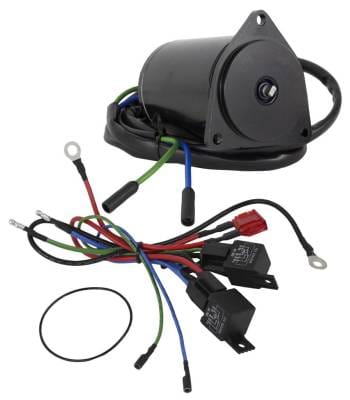

Tilt Trim Motor Compatible With Yamaha 200Etx 150Etx 115Etl 90Etlk 90Etlj 70Etlk 70Etlj 2-Stroke

OEM PART NUMBERS:
• Yamaha: 688-43880-11 / 6884388011
• Yamaha: 688-43880-11-00 / 688438801100
• Yamaha: 688-43880-10 / 6884388010
• Yamaha: 6E5-43880-02 / 6E54388002
• Yamaha: 6E5-43880-02-00
• Yamaha: 6E5-43880-01 / 6E54388001
• Yamaha: 6E5-43880-01-00



AFTERMARKET CROSS REFERENCE:
• Arco Marine: 6267
SPECIFICATIONS:
• Type: Tilt Trim Motor (Early Model)
• Voltage: 12V DC
• Rotation: Reversible
• Connection: 3-Wire
• Terminals: Ring Terminal Ends
• Mounting: 3-Bolt
• Mounting Flange OD: 68.3mm / 2.69in
• Shaft OD: 8mm
• Shaft Type: 4mm Thick Blade
• Field Housing OD: 91.4mm / 3.598in
• Overall Length: 124.6mm / 4.906in
• Includes: O-Ring
• Weight: 6 lbs
• Condition: New

YAMAHA APPLICATIONS (1985-1991):
• 50HP: PRO50L (1987-1990), 50ETML (1990), 50TLH/P50TLR (1991)
• 70HP: 70ETL (1985-1986)
• 90HP: 90ETL (1985-1986)
• 115HP: 115ETL (1985-1986)
• 150HP: 150ETX (1985-1986)
• 200HP: 200ETX (1985-1986)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
YAMAHA 50HP 2-STROKE OUTBOARD (1985-1991):
• PRO50LH (1987)
• PRO50LG (1988)
• PRO50LF (1989)
• PRO50LD (1990)
• 50ETMLD (1990)
• 50TLHP (1991)
• P50TLRP (1991)

YAMAHA 70HP 2-STROKE OUTBOARD (1985-1986):
• 70ETLK (1985)
• 70ETLJ (1986)

YAMAHA 90HP 2-STROKE OUTBOARD (1985-1986):
• 90ETLK (1985)
• 90ETLJ (1986)
• 90ETLJ-JD (1986)

YAMAHA 115HP 2-STROKE OUTBOARD (1985-1986):
• 115ETL (1985-1986)

YAMAHA 150HP 2-STROKE OUTBOARD (1985-1986):
• 150ETX (1985-1986)

YAMAHA 200HP 2-STROKE OUTBOARD (1985-1986):
• 200ETX (1985-1986)

CRITICAL FIT NOTE:
• Verify mounting flange diameter (68.3mm) and shaft blade thickness (4mm)
• 3-wire connection / 3-bolt mount / Ring terminal ends
