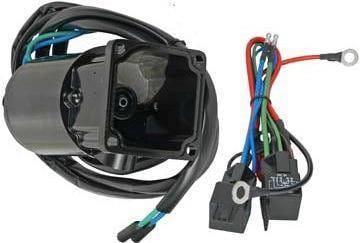

Tilt Trim Motor Compatible With Force 85Hp 90Hp 120Hp 125Hp 150Hp Mercury 75Hp 100Hp 115Hp 120Hp

OEM PART NUMBERS:
• Mercury Marine / Force: 824051
• Mercury Marine (superseded): 830250A2 / 830250A6
• Mercury Marine (current): 8M0055012 / 8M0090334 / 8M0171817
• Mercury Marine: 811673-1 (reservoir assembly)
• Quicksilver: 8M6007532



AFTERMARKET CROSS REFERENCE:
• API Marine: PT495NK
• Arco Marine: 6274
• 18-6775
SPECIFICATIONS:
• Type: Tilt Trim Motor
• Voltage: 12V
• Rotation: Reversible
• Wire Connection: 2-Wire (replaces OE 3-wire 1993-1995)
• Mounting: 4 Bolt
• Shaft: Female 4mm Hex
• Field Housing OD: 78mm (3.071 in)
• Overall Length: 160mm (6.299 in)
• Weight: 7 lbs
• Tilt System: Single Ram
• Condition: New

MERCURY OUTBOARD APPLICATIONS:
• 65HP / 65HP Jet 3-Cyl (1994-1999)
• 75HP 3-Cyl Looper (1990-1999) / 80HP 4-Cyl (1994-1999)
• 90HP 3-Cyl Looper (1990-1999) / 100HP 4-Cyl Looper (1985-1999)
• 115HP 4-Cyl Looper (1989-1999) / 120HP 4-Cyl (1995-1997)
• 125HP 4-Cyl Looper (1994-1999)

FORCE OUTBOARD APPLICATIONS:
• 85HP (1986-1991) / 90HP 3-Cyl (1986-1997)
• 120HP 4-Cyl (1986-1997) / 125HP (1986-1991) / 150HP (1987-1994)

MARINER OUTBOARD:
• 75HP-125HP w/single ram tilt system (1986-1999)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
MERCURY OUTBOARD — SINGLE RAM TILT SYSTEM:
• 65HP 3-Cyl 2-Stroke Outboard (1994-1999)
• 65HP Jet 3-Cyl 2-Stroke Outboard (1994-1999)
• 75HP 3-Cyl Looper 2-Stroke Outboard (1990-1999)
• 80HP 4-Cyl 2-Stroke Outboard (1994-1999)
• 90HP 3-Cyl Looper 2-Stroke Outboard (1990-1999)
• 100HP 4-Cyl Looper 2-Stroke Outboard (1985-1999)
• 115HP 4-Cyl Looper 2-Stroke Outboard (1989-1999)
• 120HP 4-Cyl 2-Stroke Outboard (1995-1997)
• 125HP 4-Cyl Looper 2-Stroke Outboard (1994-1999)

MARINER OUTBOARD — SINGLE RAM TILT SYSTEM:
• 75HP 3-Cyl 2-Stroke Outboard (1990-1999)
• 80HP 4-Cyl 2-Stroke Outboard (1994-1999)
• 90HP 3-Cyl 2-Stroke Outboard (1990-1999)
• 100HP 4-Cyl 2-Stroke Outboard (1988-1999)
• 115HP 4-Cyl 2-Stroke Outboard (1989-1999)
• 120HP 4-Cyl 2-Stroke Outboard (1995-1997)
• 125HP 4-Cyl 2-Stroke Outboard (1994-1999)

FORCE OUTBOARD (CHRYSLER/FORCE) — SINGLE RAM TILT SYSTEM:
• 85HP 2-Stroke Outboard (1986-1991)
• 90HP 3-Cyl 2-Stroke Outboard (1986-1997)
• 120HP 4-Cyl 2-Stroke Outboard (1986-1997)
• 125HP 2-Stroke Outboard (1986-1991)
• 150HP 2-Stroke Outboard (1987-1994)

NOTES:
• Single ram hydraulic tilt system only
• 2-wire motor replaces original OE 3-wire motor (1993-1995 models)
• Force Outboards were manufactured by Chrysler Marine / US Marine
• Mercury acquired Force brand — 824051 is used across all three brands
• Verify OEM part number from your original unit before ordering
