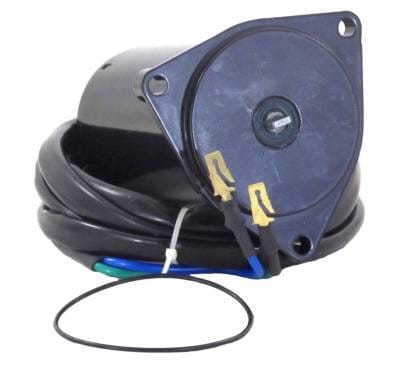

Tilt Trim Motor Compatible With Evinrude Johnson Omc Sea-Drive 3 4 6 8 Cylinder 40-250Hp Outboard

OEM PART NUMBERS:
• OMC: 391264 / 0391264
• OMC: 393259 / 0393259
• OMC: 393988 / 0393988
• OMC: 394176 / 0394176
• OMC: 395840 / 0395840
• OMC: 434795 / 0434795
• OMC: 435548
• OMC: 437666
• OMC: 983019 / 0983019
• OMC: 983446 / 0983446
• OMC: 985237 / 0985237
• PMW4001 / PMW4002 / PWM4002
• 40-478 / 40478 / 40-496 / 40496



AFTERMARKET CROSS REFERENCE:
• API Marine: PT301NM
• Arco Marine: 6220
• 18-6759
SPECIFICATIONS:
• Type: Tilt Trim Motor
• Design:
• Voltage: 12V
• Rotation: Reversible
• Connection: 2-Wire, 8-Foot Harness
• Terminals: Split Tab Male Blade
• Mounting: 3-Bolt Flange
• Shaft OD: 8mm / 0.315in (Tanged)
• Field Housing OD: 64mm / 2.520in
• Overall Length: 132.1mm / 5.201in
• O-Ring Included
• Weight: 6 lbs
• Condition: New

APPLICATIONS SUMMARY:
• Evinrude/Johnson 40-250HP Outboard (1981-1992)
• OMC/Sea-Drive 40-235HP (1981-1992)
• Most 3, 4, 6 & 8 Cylinder Applications
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
EVINRUDE OUTBOARD APPLICATIONS (1981-1992):
• 40HP / 45HP / 48HP / 50HP 3-Cylinder (1981-1992)
• 60HP V4 (1981-1992)
• 70HP / 75HP / 80HP / 90HP (1981-1992)
• 110HP / 115HP / 120HP / 130HP / 135HP (1981-1992)
• 140HP / 150HP / 155HP / 175HP (1981-1992)
• 185HP / 200HP / 210HP (1981-1992)
• 225HP / 235HP / 250HP (1981-1992)

JOHNSON OUTBOARD APPLICATIONS (1981-1992):
• 40HP / 45HP / 48HP / 50HP 3-Cylinder (1981-1992)
• 60HP V4 (1981-1992)
• 70HP / 75HP / 80HP / 90HP (1981-1992)
• 110HP / 115HP / 120HP / 130HP / 135HP (1981-1992)
• 140HP / 150HP / 155HP / 175HP (1981-1992)
• 185HP / 200HP / 210HP (1981-1992)
• 225HP / 235HP / 250HP (1981-1992)

OMC / SEA-DRIVE APPLICATIONS (1981-1992):
• OMC 40-235HP All Models (1981-1992)
• Sea-Drive 40-235HP All Models (1981-1992)

SYSTEM DETAILS:
• Design, 12V, 2-Wire
• 8-Foot Harness w/Split Tab Male Blade Terminals
• 3-Bolt Mounting Flange, O-Ring Included
