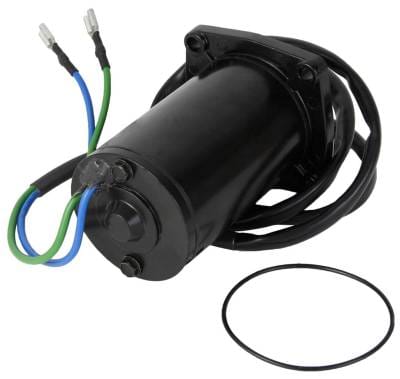

Tilt Trim Motor Compatible With Evinrude E40pl E50pl Johnson J40pl4 J50pl4 Bj40pl4 Bj50pl4 Suzuki

OEM PART NUMBERS:
• Suzuki: 38100-87J10 / 3810087J10
• Suzuki: 38100-87J11 / 3810087J11
• Suzuki: 38100-87J12 / 3810087J12
• Suzuki: 38100-87J20 / 3810087J20
• Suzuki: 38100-87J21 / 3810087J21
• Honda: 36120-ZV5-822 / 36120ZV5822
• OMC: 5032670



AFTERMARKET CROSS REFERENCE:
• API Marine: PT656NM
• Arco Marine: 6237
• 18-6793
SPECIFICATIONS:
• Type: Tilt Trim Motor
• Voltage: 12V DC
• Rotation: Reversible
• Shaft Type: Slotted
• Shaft OD: 8mm / 0.315in
• Field Housing OD: 87mm / 3.425in
• Overall Length: 123mm / 4.843in
• Weight: 6 lbs
• Condition: New

APPLICATIONS (1999-2010):
• Suzuki: DF40/DF40QH/DF40TL (1999-2010), DF50/DF50QH/DF50TL (1999-2010)
• Honda: BF40A2/A3, BF50A2/A3 LHTA/LRTA/XRTA (2002-2003)
• Evinrude: E40PL / E50PL (2001)
• Johnson: J40PL4 / J50PL4 (2002-2004), BJ40PL4 / BJ50PL4 (2004)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
SUZUKI DF40 4-STROKE 40HP OUTBOARD (1999-2010):
• DF40 (1999-2009)
• DF40QH / DF40QHL (1999-2007)
• DF40TL (1999-2010)

SUZUKI DF50 4-STROKE 50HP OUTBOARD (1999-2010):
• DF50 (1999-2009)
• DF50QH / DF50QHL (1999-2007)
• DF50TL (1999-2010)

HONDA BF40 4-STROKE 40HP OUTBOARD (2002-2003):
• BF40A2 LHTA (2002) — VIN BAYS-3220001 to BAYS-3399999
• BF40A2 LRTA (2002) — VIN BAYS-3220001 to BAYS-3299999
• BF40A2 XRTA (2002) — VIN BAYS-3220001 to BAYS-3299999
• BF40A3 LHTA / LRTA / XRTA (2003) — VIN BAYS-3300001

HONDA BF50 4-STROKE 50HP OUTBOARD (2002-2003):
• BF50A2 LHTA / LRTA / XRTA (2002) — VIN BAZS-3220001 to BAZS-3299999
• BF50A3 LHTA / LRTA / XRTA (2003) — VIN BAZS-3300001

EVINRUDE 40-50HP 4-STROKE OUTBOARD (2001):
• E40PL (2001)
• E50PL (2001)

JOHNSON 40-50HP 4-STROKE OUTBOARD (2002-2004):
• J40PL4 (2002-2004)
• J50PL4 (2002-2004)
• BJ40PL4 (2004)
• BJ50PL4 (2004)
