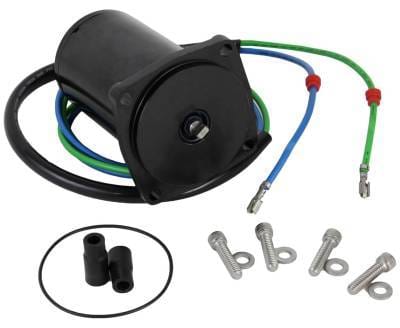

Tilt Trim Motor Compatible With 2005-2018 Evinrude E-Tec Outboard 60 65 70 75 80 90 115 130 Hp 12V

OEM PART NUMBERS:
• OMC/BRP: 5007776
• OMC/BRP: 5006319
• OMC/BRP: 5005756
• OMC/BRP: 5005838 (superseded by 5006319)
• OMC/BRP: 5005817 (superseded by 5006319)
• Quicksilver: 8M6007529

SPECIFICATIONS:
• Product Type: Tilt Trim Motor (Motor Only)
• Voltage: 12V DC
• Rotation: Reversible (Bi-Directional)
• Connection: 2-Wire (#12 Female WeatherPak)
• Mounting: 4-Bolt (7mm Mounting Holes)
• Shaft Type: Flat Blade (4mm x 8mm Drive Tang)
• Motor OD: 72.15mm / 2.841 inches
• Shaft OD: 8mm / 0.315 inches
• Overall Length: 113mm / 4.449 inches
• Register: 69.8mm
• Control Cables: 2 x 51 inches
• Trim Type: Single Cylinder Power Trim and Tilt
• Condition: New

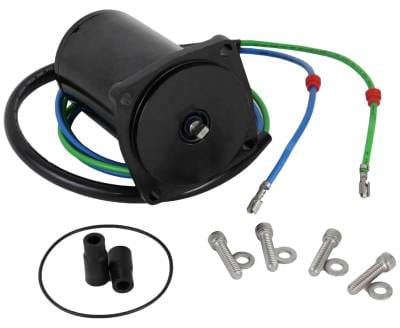

KIT INCLUDES:
• Tilt Trim Motor
• O-Ring
• Rubber Grommets
• Stainless Steel Mounting Bolts with Washers

APPLICATION:
• Evinrude E-TEC 60-65 HP Outboard (2005-2018)
• Evinrude E-TEC 70-75-80 HP Outboard (2005-2018)
• Evinrude E-TEC 90 HP Outboard (2005-2018)
• Evinrude E-TEC 115 HP Outboard (2007-2018)
• Evinrude E-TEC 130 HP Outboard (2009-2018)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
EVINRUDE E-TEC OUTBOARD MOTORS:
• Evinrude E-TEC 60 HP Outboard (2005-2018)
• Evinrude E-TEC 65 HP Outboard (2005-2016)
• Evinrude E-TEC 70 HP Outboard (2005-2018)
• Evinrude E-TEC 75 HP Outboard (2005-2018)
• Evinrude E-TEC 80 HP Outboard (2005-2018)
• Evinrude E-TEC 90 HP Outboard (2005-2018)
• Evinrude E-TEC 115 HP Outboard (2007-2018)
• Evinrude E-TEC 130 HP Outboard (2009-2018)

SPECIFIC EVINRUDE MODEL CODES:
• E60DPJ / E60HGL / E60HGX / E60HSL (60 HP)
• E65GLA / E65GNL / E65JDPL / E65NSL / E65SL (65 HP)
• E75DPG / E75DPL / E75DSL (75 HP)
• E90DGX / E90DMX / E90DPG / E90DPL / E90DPX / E90DSL / E90GL / E90GNL / E90HGL / E90HSL / E90SLA / E90SNL / E90WDEL / E90WDEX / E90WDPL (90 HP)
• A115GHL / A115SHL / E115DGL / E115DHL / E115DPL / E115DSL / E115GNL / E115HSL / E115SNL (115 HP)
• E130DPL / E130DSL (130 HP)

KIT INCLUDES:
• Tilt Trim Motor
• O-Ring
• Rubber Grommets
• Stainless Steel Mounting Bolts with Washers

FITMENT NOTES:
• Single cylinder power trim and tilt systems
• 2-wire connection with #12 Female WeatherPak terminals
• 4-bolt mount with 7mm mounting holes
• Flat blade shaft with 4mm x 8mm drive tang
• Verify OEM part number from your original unit before ordering
