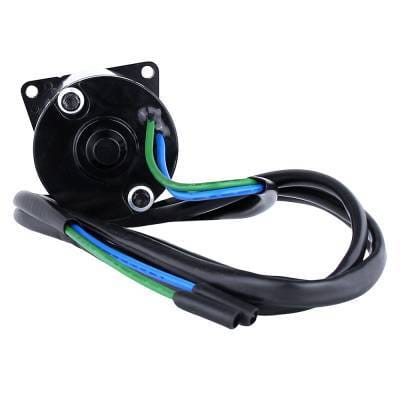

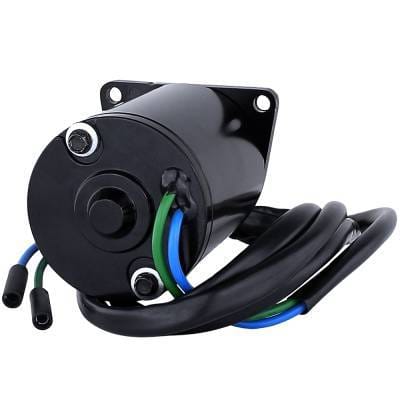

Tilt Trim Motor Compatible With 1987 1988 1989 1990 1991 Yamaha 70Hp 90Hp 85Hp 60Hp 2-Stroke

OEM PART NUMBERS:
• Yamaha: 6H1-43880-00-00 / 6H1438800000
• Yamaha: 6H1-43880-00 / 6H14388000
• Quicksilver: 8M6007571



AFTERMARKET CROSS REFERENCE:
• API Marine: PT609NM
• Arco Marine: 6267
• 18-6259
SPECIFICATIONS:
• Type: Tilt Trim Motor Conversion Kit
• Voltage: 12V DC
• Rotation: Reversible
• Connection: 2-Wire (Butt Connectors)
• NOTE: 2-Wire Replacement for 3-Wire OE Unit
• Shaft OD: 7.9mm / 0.311in
• Shaft Type: 4mm W x 5.5mm H Tang
• Field Housing OD: 77.7mm / 3.059in
• Registration OD: 70.7mm
• Overall Length: 127.5mm / 5.02in
• Mounting: 3-Bolt

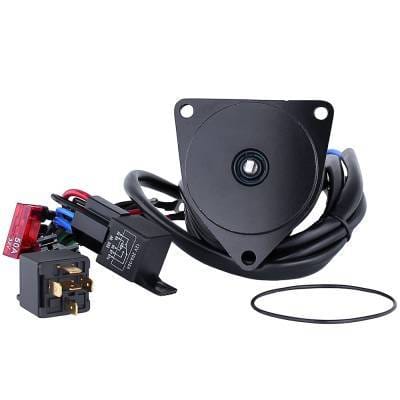

• Includes: O-Ring
• Includes: Adaptor Harness w/32V 30A Fuse
• Includes: (2) 12V 20A/30A Relays
• Weight: 5.06 lbs / 2.3 kg
• Condition: New

YAMAHA APPLICATIONS (1987-1991):
• 60HP: P60TLHP (1991)
• 70HP: 70ETL (1987-1990) / 70TLRP (1991)
• 85HP: CV85ELD/ETLD (1990) / C85TLRP (1991)
• 90HP: 90ETL (1987-1990) / 90TJRP/TLRP (1991)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
YAMAHA 70HP 2-STROKE OUTBOARD (1987-1991):
• 70ETLH (1987)
• 70ETLG (1988)
• 70ETLF (1989)
• 70ETLD (1990)
• 70TLRP (1991)

YAMAHA 90HP 2-STROKE OUTBOARD (1987-1991):
• 90ETLH / 90ETLHJD (1987)
• 90ETLG / 90ETLGJD (1988)
• 90ETLF / 90ETLFJD (1989)
• 90ETLD / 90ETLDJD (1990)
• 90TJRP / 90TLRP (1991)

YAMAHA 85HP 2-STROKE OUTBOARD (1990-1991):
• CV85ELD (1990)
• CV85ETLD (1990)
• C85TLRP (1991)

YAMAHA 60HP 2-STROKE OUTBOARD (1991):
• P60TLHP (1991)

NOTE — CONVERSION KIT:
• 2-wire motor replaces original 3-wire OE unit
• Includes adaptor harness with 32V/30A fuse and (2) 12V 20A/30A relays
• Verify registration OD (70.7mm) and shaft tang dimensions before ordering
