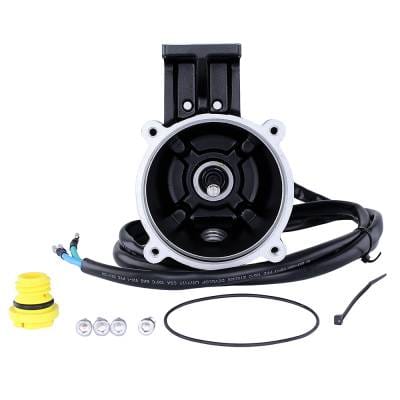

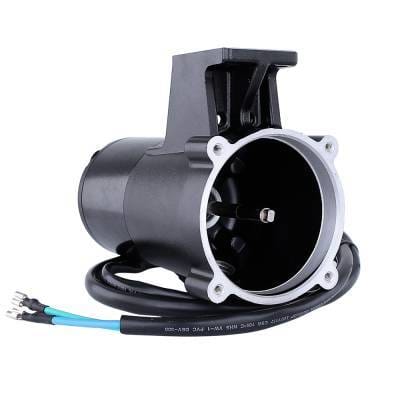

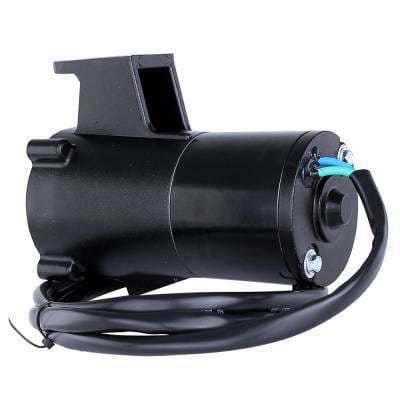

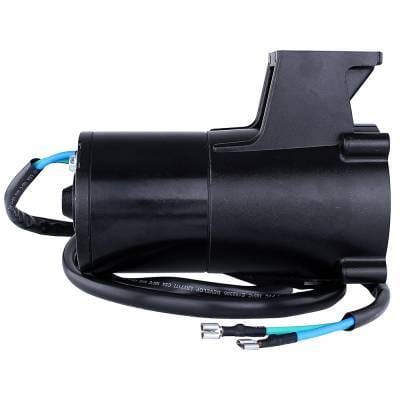

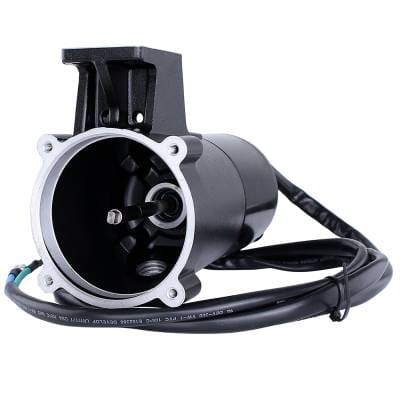

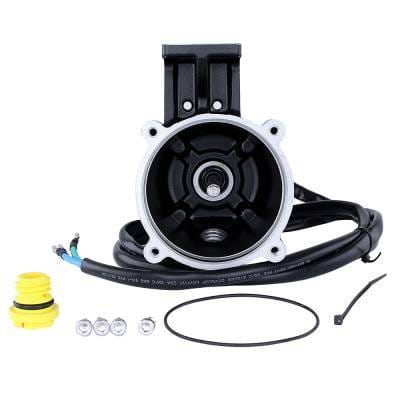

Tilt Trim Motor And Reservoir Compatible With 1986-1991 Force 85 90 120 125 135 150 Hp Volvo Penta

OEM PART NUMBERS:
• Force: 820545
• Force: F694541-1 / F6945411
• Force: F694541-2 / F6945412
• ARCO Marine: 6212
• API Marine: PT116N-3
• Sierra: 18-6279

SPECIFICATIONS:
• Unit Type: Tilt Trim Motor with Reservoir
• Voltage: 12V
• Field Housing OD: 74.7mm / 2.941in
• Overall Length: 175.1mm / 6.894in
• Shaft OD: 8.2mm / 0.323in
• Wire Connection: 2-Wire
• Approximate Weight: 4.26 lbs / 1.94 kg
• Condition: New

APPLICATION:
• Force Outboard 85/90/120/125/135/150HP (1986-1991)
• Volvo Penta Outboard 85/90/120/125/135/150HP (1986-1991)
• All models with 2-wire tilt trim connection (1986-1991)

12V Tilt Trim Motor - Force and Volvo Penta Outboard 85-150HP
New 12 volt tilt trim motor and reservoir assembly for 1986-1991 Force and Volvo Penta outboard motors ranging from 85 to 150 horsepower. Features 2-wire connection and integrated hydraulic reservoir. Direct OEM replacement for Force 820545, F694541-1, F694541-2, ARCO Marine 6212, API Marine PT116N-3, and Sierra 18-6279. Field housing measures 74.7mm OD with 8.2mm shaft diameter and 175.1mm overall length. Weighs approximately 4.26 lbs.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
FORCE OUTBOARD MOTORS:
• Force 85HP Outboard (1986-1991)
• Force 90HP Outboard (1986-1991)
• Force 120HP Outboard (1986-1991)
• Force 125HP Outboard (1986-1991)
• Force 135HP Outboard (1986-1991)
• Force 150HP Outboard (1986-1991)

VOLVO PENTA OUTBOARD MOTORS:
• Volvo Penta 85HP Outboard (1986-1991)
• Volvo Penta 90HP Outboard (1986-1991)
• Volvo Penta 120HP Outboard (1986-1991)
• Volvo Penta 125HP Outboard (1986-1991)
• Volvo Penta 135HP Outboard (1986-1991)
• Volvo Penta 150HP Outboard (1986-1991)

NOTE: Tilt trim motor and reservoir assembly with 2-wire connection. Verify OEM part number before ordering.
