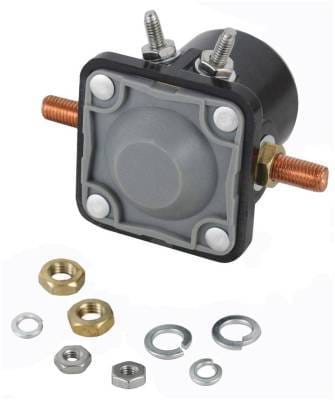

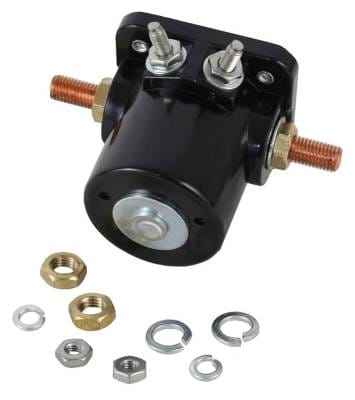

Starter Solenoid Compatible With Johnson Evinrude Omc Outboard 20Hp 25Hp 30Hp 35Hp 40Hp 50Hp 60Hp

OEM PART NUMBERS:
• OMC: 582708 / 586180 / 395419 / 383622
• OMC: 389398 / 389493 / 380095 / 3217124 / 0395419
• Mercury Marine: 47886 / 47886T
• Sierra Marine: 18-5808 / 185808

SPECIFICATIONS:
• Type: Starter Solenoid
• Unit Type: OMC Outboard
• Voltage: 12V
• Terminal Count: 4
• Duty Cycle: Intermittent
• Ground: Insulated
• Terminals: (2) 5/16-24 Threaded, (2) 10-32 Threaded
• Case Material: Plastic
• Contact Material: Copper
• Weight: 1 lb
• Condition: New

EVINRUDE / JOHNSON OMC OUTBOARD APPLICATIONS:
• E20-E50 Series 20-50HP 2-Stroke Outboards
• E55-E90 Series 55-90HP 2-Stroke Outboards
• E100-E155 Series 100-155HP 2-Stroke Outboards
• E175-E300 Series 175-300HP V6 V8 2-Stroke Outboards
• VE Series (V6 Models) and TE Series (Tracker Models)
• CE275 / CE300 Series 275-300HP V8 Outboards
• Also fits Mercury Marine and OMC Inboard Power Tilt/Trim MotorsPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
EVINRUDE / JOHNSON OUTBOARD - 20HP TO 50HP:
• E20 Series (E20CR, E20CRL, E20E, E20EL, E20TE) 20HP 2-Stroke
• E25 Series (E25E, E25EL, E25R, E25RL, E25TE, E25TEL) 25HP 2-Stroke
• E28 Series (E28ESL) 28HP 2-Stroke
• E30 Series (E30E, E30EL, E30R, E30RL, E30TE, E30TEL) 30HP 2-Stroke
• E35 Series (E35AEL, E35ARL, E35R, E35RL) 35HP 2-Stroke
• E40 Series (E40E, E40EL, E40R, E40RL, E40TE, E40TEL, E40TL, E40TTL, E40AEL, E40ARL, E40ATL) 40HP 2-Stroke
• E45 Series (E45RC, E45RCL, E45WML) 45HP 2-Stroke
• E48 Series (E48ESL) 48HP 2-Stroke
• E50 Series (E50BE, E50BEL, E50TEL, E50TL, E50J, E50RNL) 50HP 2-Stroke

EVINRUDE / JOHNSON - 55HP TO 90HP:
• E55 Series (E55RWL) 55HP 2-Stroke
• E60 Series (E60EL, E60TL, E60TTL) 60HP 2-Stroke
• E65 Series (E65RWL, E65TEL, E65WML, E65WTL) 65HP 2-Stroke
• E70 Series (E70EL, E70TL, E70TTL) 70HP 2-Stroke
• E75 Series (E75E) 75HP 2-Stroke
• E85 Series (E85TTL) 85HP 2-Stroke
• E88 Series (E88MSL) 88HP 2-Stroke
• E90 Series (E90ML, E90TL, E90TX, E90J) 90HP 2-Stroke

EVINRUDE / JOHNSON - 100HP TO 155HP:
• E100 Series (E100STL, E100WML, E100WTL, E100WTX) 100HP 2-Stroke
• E110 Series (E110ML, E110TL, E110TX) 110HP 2-Stroke
• E115 Series (E115ML, E115TL, E115TX, E115JL) 115HP 2-Stroke
• E120 Series (E120TL, E120TX) 120HP 2-Stroke
• E125 Series (E125ESX) 125HP 2-Stroke
• E140 Series (E140TL, E140TX, E140CX) 140HP V6 2-Stroke
• E150 Series (E150STL, E150TL, E150TX, E150CX, E150EL, E150GL, E150JL, E150NX) 150HP V6 2-Stroke
• E155 Series (E155WTL, E155WTX) 155HP 2-Stroke

EVINRUDE / JOHNSON - 175HP TO 300HP:
• E175 Series (E175TL, E175TX, E175STL, E175EX, E175GL, E175NX) 175HP V6 2-Stroke
• E185 Series (E185TL, E185TX, E185ESX) 185HP V6 2-Stroke
• E200 Series (E200STL, E200TX, E200CX) 200HP V6 2-Stroke
• E225 Series (E225TL, E225TX, E225PL, E225PX, E225CX, E225CL, E225CZ) 225HP V6 2-Stroke
• E235 Series (E235STL, E235TL, E235TX) 235HP V8 2-Stroke
• E250 Series (E250CX, E250TX, E250CZ, E250TZ) 250HP V6 2-Stroke
• E275 Series (E275TL, E275TX, E275PL, E275PX, E275CL, E275CX) 275HP V8 2-Stroke
• CE275 Series (CE275TL, CE275TX) 275HP V8 2-Stroke
• E300 Series (E300TL, E300TX, E300PL, E300PX, E300CX) 300HP V8 2-Stroke
• CE300 Series (CE300TL, CE300TX) 300HP V8 2-Stroke

ALSO FITS VE PREFIX (V6 SERIES) AND TE PREFIX (TRACKER SERIES) MODELS
• VE25 through VE300 Series
• TE25 through TE200 Series
• C155 / W100 / T65 Series
