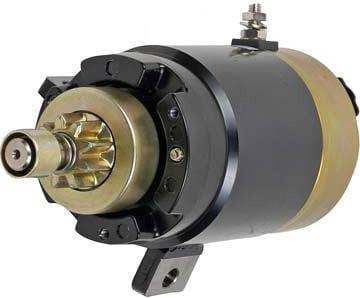

Starter Motor Compatible With Yamaha Outboard C75tlr C85tlr P75tlh Cv85el 75Hp 85Hp 90Hp Ccw Sierra

OEM PART NUMBERS:
• Hitachi: S114-263B / S114263B
• Hitachi: S114-263BN
• Yamaha: 688-81800-10 / 688-81800-10-00
• Yamaha: 688-81800-11 / 688-81800-11-00
• Yamaha: 688-81800-12 / 688-81800-12-00
• Sierra Marine: 18-6423 / 186423
• Arco Marine: 3427

SPECIFICATIONS:
• Voltage: 12V
• Type: DD (Direct Drive)
• Rotation: CCW (Counterclockwise)
• Teeth: 9
• Pinion Gear OD: 28.3mm / 1.114"
• Mounting Holes: 3x 9.0mm ID Unthreaded
• Weight: 7.9 lbs / 3.59 kg
• Condition: New

APPLICATION:
• Yamaha Outboard 90TLR 90HP (1991-2010)
• Yamaha Outboard 90TJR 90HP (1991-2001)
• Yamaha Outboard 90ETL 90HP (1984-1990)
• Yamaha Outboard B90TLR 90HP (1998-1999)
• Yamaha Outboard C90TLR 90HP (1997-2001)
• Yamaha Outboard C75TLR 75HP (1994-1999)
• Yamaha Outboard P75TLH 75HP (1996-1999)
• Yamaha Outboard C80TLR 80HP (1997)
• Yamaha Outboard C85TLR 85HP (1991-1996)
• Yamaha Outboard CV85EL/CV85ETL 85HP (1990)

Starter Motor - Yamaha Outboard 75HP/85HP
New 12V direct drive starter. CCW rotation, 9 teeth, 7.9 lbs. Replaces Sierra Marine 18-6423, Yamaha 688-81800-10, 688-81800-11, 688-81800-12, Hitachi S114-263BN, Arco 3427. Verify part number before ordering.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
YAMAHA 90HP OUTBOARD MOTORS:
• 90ETL 90HP (1984-1990)
• 90ETLJD 90HP (1987-1990)
• 90ETX 90HP (1984)
• 90TJR 90HP (1991-2001)
• 90TLR 90HP (1991-2010)
• B90TLR 90HP (1998-1999)
• C90TLR 90HP (1997-2001)

YAMAHA 75HP/80HP/85HP OUTBOARD MOTORS:
• C75TLR 75HP (1994-1999)
• P75TLH 75HP (1996-1999)
• C80TLR 80HP (1997)
• C85TLR 85HP (1991-1996)
• CV85EL 85HP (1990)
• CV85ETL 85HP (1990)

NOTE: Verify OEM part number before ordering.
