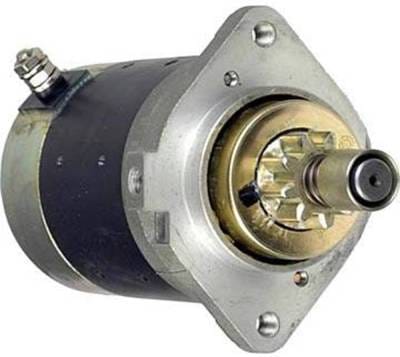

Starter Motor Compatible With 1999-2000 Suzuki Df40q Df40t Df50q Df50t 1998-2000 Df60t Df70t

OEM PART NUMBERS:
• Hitachi: S114-671A / S114671A, S114-671
• Suzuki: 31100-87J00 / 3110087J00
• Suzuki: 31100-87500 / 3110087500
• Suzuki: 31100-99E-00

SPECIFICATIONS:
• Voltage: 12V
• Type: PMDD (Permanent Magnet Direct Drive)
• Rotation: CCW (Counterclockwise)
• Teeth: 8
• Gear OD: 1.102 in / 28mm
• Mounting: 3x M8-1.25 Threaded Ears
• CE Housing: (2) M8-1.25 Threaded Mounting Holes
• Weight: 5 lbs
• Condition: New

APPLICATION:
• Suzuki DF40Q/DF40T 4-Stroke 49.7CI 40 HP (1999-2000)
• Suzuki DF50Q/DF50T 4-Stroke 49.7CI 50 HP (1999-2000)
• Suzuki DF60T 4-Stroke 79.2CI 60 HP (1998-2000)
• Suzuki DF70T 4-Stroke 79.2CI 70 HP (1998-2000)

Starter Motor — Suzuki DF40Q DF50Q DF60T DF70T 4-Stroke
New starter motor for Suzuki DF-series 4-stroke outboards. This 12-volt PMDD starter replaces the original Hitachi unit with matched specifications for the DF40Q, DF40T, DF50Q, DF50T, DF60T, and DF70T models. The compact permanent magnet design provides efficient cranking with minimal battery draw while the direct drive engagement ensures positive flywheel contact. Features 8-tooth pinion with 28mm gear outer diameter and counterclockwise rotation. Three M8-1.25 threaded mounting ears plus two additional M8-1.25 threaded holes in the commutator end housing. Replaces Suzuki 31100-87500 and 31100-99E-00.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
SUZUKI 4-STROKE OUTBOARDS — 40/50 HP:
• DF40Q 4-Stroke 49.7CI 40 HP (1999-2000)
• DF40T 4-Stroke 49.7CI 40 HP (1999-2000)
• DF50Q 4-Stroke 49.7CI 50 HP (1999-2000)
• DF50T 4-Stroke 49.7CI 50 HP (1999-2000)

SUZUKI 4-STROKE OUTBOARDS — 60/70 HP:
• DF60T 4-Stroke 79.2CI 60 HP (1998-2000)
• DF70T 4-Stroke 79.2CI 70 HP (1998-2000)

ENGINE DETAILS:
• DF40/DF50: 3-Cylinder, 49.7 Cubic Inches (815cc), EFI
• DF60/DF70: 4-Cylinder, 79.2 Cubic Inches (1298cc), EFI

NOTE: Verify OEM part number from your original unit before ordering to ensure proper fitment.
