Starter Motor Compatible With 1998-2000 Suzuki Df40 Df50 Df60 Df70 4-Stroke Outboard 40 50 60 70 Hp

OEM PART NUMBERS:
• Hitachi: S114-671A / S114671A, S114-671
• Suzuki: 31100-87J00 / 3110087J00
• Suzuki: 31100-87500 / 3110087500
• Suzuki: 31100-99E-00

SPECIFICATIONS:
• Voltage: 12V
• Type: PMDD (Permanent Magnet Direct Drive)
• Rotation: CCW (Counterclockwise)
• Teeth: 8
• Gear OD: 1.102 in / 28mm
• Mounting: 3x M8-1.25 Threaded Ears
• CE Housing: (2) M8-1.25 Threaded Mounting Holes
• Weight: 5 lbs
• Condition: New

APPLICATION:
• Suzuki DF40Q/DF40T 4-Stroke 49.7CI 40 HP (1999-2000)
• Suzuki DF50Q/DF50T 4-Stroke 49.7CI 50 HP (1999-2000)
• Suzuki DF60T 4-Stroke 79.2CI 60 HP (1998-2000)
• Suzuki DF70T 4-Stroke 79.2CI 70 HP (1998-2000)

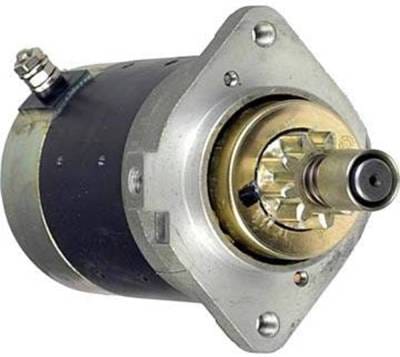

Starter Motor — Suzuki DF40 DF50 DF60 DF70 Marine Outboard
Replacement starter for 1998-2000 Suzuki DF40, DF50, DF60, and DF70 4-stroke outboard motors. This 12-volt PMDD starter uses permanent magnet technology to deliver strong cranking torque while keeping overall weight to just 5 pounds. The 8-tooth pinion with 28mm outer diameter engages the flywheel ring gear with counterclockwise rotation. Three M8-1.25 threaded mounting ears provide a direct bolt-on fit to the engine block. The commutator end housing includes two additional M8-1.25 threaded mounting points for proper alignment. Replaces Suzuki 31100-87J00, 31100-87500, and Hitachi S114-671A.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
SUZUKI 4-STROKE OUTBOARDS — 40/50 HP:
• DF40Q 4-Stroke 49.7CI 40 HP (1999-2000)
• DF40T 4-Stroke 49.7CI 40 HP (1999-2000)
• DF50Q 4-Stroke 49.7CI 50 HP (1999-2000)
• DF50T 4-Stroke 49.7CI 50 HP (1999-2000)

SUZUKI 4-STROKE OUTBOARDS — 60/70 HP:
• DF60T 4-Stroke 79.2CI 60 HP (1998-2000)
• DF70T 4-Stroke 79.2CI 70 HP (1998-2000)

ENGINE DETAILS:
• DF40/DF50: 3-Cylinder, 49.7 Cubic Inches (815cc), EFI
• DF60/DF70: 4-Cylinder, 79.2 Cubic Inches (1298cc), EFI

NOTE: Verify OEM part number from your original unit before ordering to ensure proper fitment.
