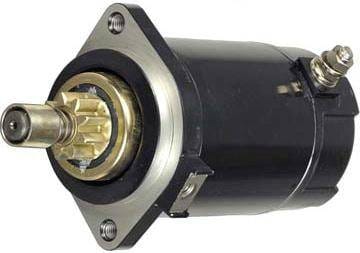

Starter Motor Compatible With 1984-1996 Yamaha 115Hp 130Hp 150Hp Outboard 115Tlr 115Txr 130Etl

OEM PART NUMBERS:
• Hitachi: S114-323, S114323
• Yamaha: 6E5-81800-10, 6E5-81800-10-00, 6E58180010, 6E5818001000
• Sierra Marine: 18-6413
• Mercury Marine: 50-825095
• Prestolite: 20513554TBA

SPECIFICATIONS:
• Type: Starter - DD (Direct Drive)
• Unit Type: Hitachi
• Voltage: 12V
• Power: 1.1 kW / 1.47 HP
• Rotation: CCW (Counter-Clockwise)
• Teeth: 9
• Pinion OD: 28.5mm / 1.122 in
• Gear OD: 29.5mm / 1.161 in
• Mounting Hole 1: M8-1.25 ID Threaded
• Mounting Hole 2: M8-1.25 ID Threaded
• Mounting Hole 3: 8.8mm Unthreaded
• Overall Length: 222mm
• Weight: 6.905 lbs / 3.14 kg

FITS YAMAHA OUTBOARD 115HP (1984-1996):
• 115ETL (1984-1990), 115ETLJD (1987-1990), 115ETX (1984-1990)
• 115TJR (1991-1996), 115TLR (1991-1996), 115TXR (1991-1995)

FITS YAMAHA OUTBOARD 130HP (1988-1996):
• 130ETL (1988-1990), 130ETX (1988-1990)
• 130TLR (1991-1996), 130TXR (1991-1995)

FITS YAMAHA OUTBOARD 150HP (1985-1990):
• 150ETL (1985-1990), 150ETX (1985-1990)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
YAMAHA OUTBOARD MOTORS - 115HP (1984-1996):

115ETL:
• Yamaha 115ETL 115HP 2-Stroke Outboard - 1984, 1985, 1986, 1987, 1988, 1989, 1990

115ETLJD:
• Yamaha 115ETLJD 115HP 2-Stroke Outboard - 1987, 1988, 1989, 1990

115ETX:
• Yamaha 115ETX 115HP 2-Stroke Outboard - 1984, 1985, 1986, 1987, 1988, 1989, 1990

115TJR:
• Yamaha 115TJR 115HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995, 1996

115TLR:
• Yamaha 115TLR 115HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995, 1996

115TXR:
• Yamaha 115TXR 115HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995

YAMAHA OUTBOARD MOTORS - 130HP (1988-1996):

130ETL:
• Yamaha 130ETL 130HP 2-Stroke Outboard - 1988, 1989, 1990

130ETX:
• Yamaha 130ETX 130HP 2-Stroke Outboard - 1988, 1989, 1990

130TLR:
• Yamaha 130TLR 130HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995, 1996

130TXR:
• Yamaha 130TXR 130HP 2-Stroke Outboard - 1991, 1992, 1993, 1994, 1995

YAMAHA OUTBOARD MOTORS - 150HP (1985-1990):

150ETL:
• Yamaha 150ETL 150HP 2-Stroke Outboard - 1985, 1986, 1987, 1988, 1989, 1990

150ETX:
• Yamaha 150ETX 150HP 2-Stroke Outboard - 1985, 1986, 1987, 1988, 1989, 1990
