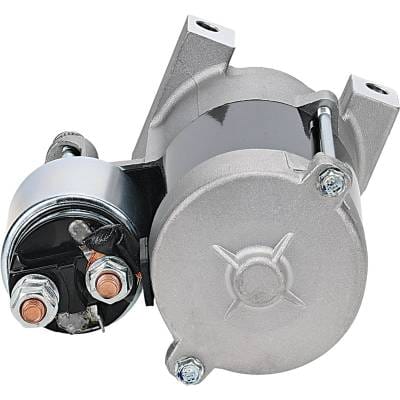

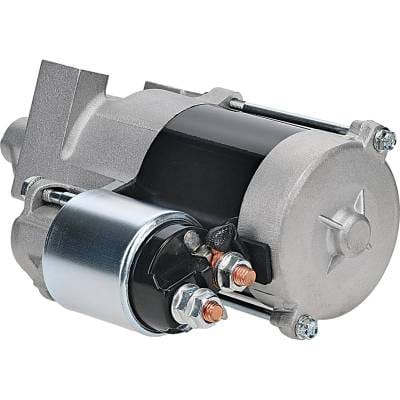

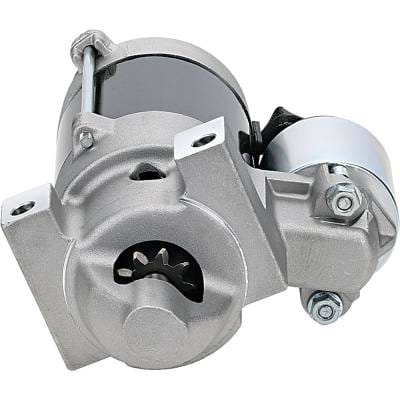

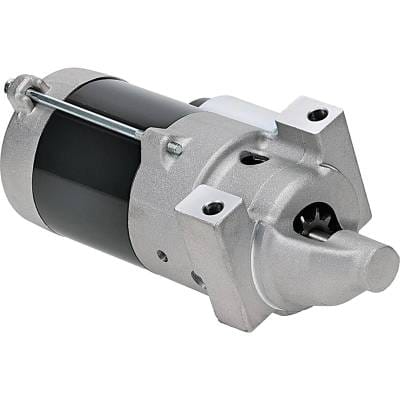

Starter Motor 12V Compatible With Deines 1800 2000 Lawn Garden Tractor Kohler 2004-2010 John Deere

JOHN DEERE OEM PART NUMBERS:
• AM107631
• AM108390
• AM124993
• AM131296

KOHLER PART NUMBERS:
• 12-098-03, 12-098-03S
• 24-098-01, 24-098-01S
• 1209803, 2409801

DENSO/NIPPONDENSO PART NUMBERS:
• 128000-7480, 1280007480
• 228000-2640, 2280002640
• 128080-7480, 228080-2640
• 9722809-264

NEW HOLLAND:
• K0H2409801

CUB CADET:
• KH-24-098-01, KH-24-098-01-S

AFTERMARKET PART NUMBERS:
• Lester: 17628
• J&N: 410-52050
• Arrowhead: SND0007
• Lucas: LRS01429, LSND0007
• Rotary: 10262
• Stens: 435-331
• Johnson Electric: 5174740
• United Tech: 5174720-M030SM, SM51747

SPECIFICATIONS:
• Voltage: 12V
• Rotation: CCW (Counter-Clockwise)
• Teeth: 9
• Type: DD (Direct Drive) / Denso Style
• Power: 0.6-0.7 kW
• Gear OD: 29mm / 1.142"
• Mounting: M8-1.25 ID Threaded
• Weight: 7.5 lbs / 3.41 kgPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
CUB CADET APPLICATIONS (1993-2003):
• Cub Cadet Riding Mowers: 365 (20HP), 3654 (25HP), 3660 (25HP) 2000-2002
• Cub Cadet Zero Turn: Z48 (18HP), Z54 (20HP) 1997-1999
• Cub Cadet Compact Tractors: 2130, 2135, 2150, 2155, 2166, 2176, 2185, 2186, 2206
• Cub Cadet Garden Tractors: 1863, 1864 (18HP), 2084 (20HP), 2284 (22HP)
• Cub Cadet Compact: 3184, 3186, 3206, 3225, 3235 (18-23HP)

JOHN DEERE APPLICATIONS (1989-2012):
• John Deere Lawn Tractors: GT225 (16HP), LX173 (15HP), LX255 (15HP), LX266 (16HP)
• John Deere STX Series: STX30 (9HP), STX38 (12.5HP) 1989-1993
• John Deere Front Mowers: F620 (20HP), F680 (20HP), F687 (23HP)
• John Deere Z-Trak: M653 (23HP), M655 (25HP), M665 (25HP)
• John Deere Aercore: 800 Greens Aerator (18HP) 2002-2012
• John Deere Sabre: 1948GV/HV (19.9HP), 2148HV (21HP), 2354HV (23HP), 2554HV (25HP)

NEW HOLLAND APPLICATIONS (1997-2012):
• New Holland Skid Steer: L120, LS120 (18HP)
• New Holland Garden Tractors: GT18, GT20, GT20A, GT22, GT22A (18-22HP)

TORO APPLICATIONS (1994-2011):
• Toro Groundsmaster: 120 (20HP) 1996-2002
• Toro Z Master: Z118, Z150, Z153, Z222, Z252, Z253, Z255, Z256, Z286E, Z320, Z325, Z350, Z355
• Toro Dingo Loaders: 222, 322, TX-420 (20-22HP)
• Toro Yard Tractors: 266-H, 267-H, 268-H, 268-HE, 269-H, 270-H, 270-HE
• Toro Garden Tractors: 518XI, 520XI, 522XI, 550 (18-22HP)
• Toro Multi Pro Sprayers: 1200, 1250 (20HP)
• Toro Workman: 3100 (23HP) 1994-2001

SCOTTS APPLICATIONS (1999-2008):
• Scotts Lawn Tractors: S2554, S2554GT (25HP)
