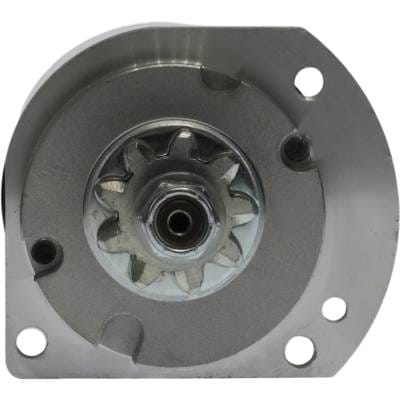

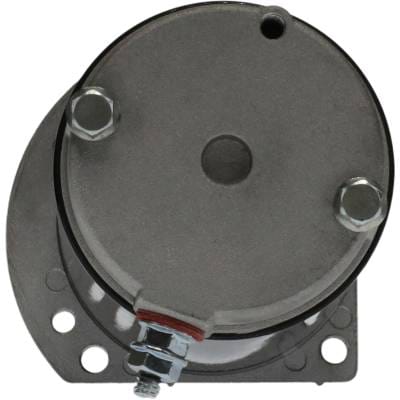

Starter Motor 12 Volt Compatible With Kohler 48-098-04 45-098-04 A277599 K482 K532 K582 Bobcat 520

OEM PART NUMBERS:
• Kohler: 45-098-04, 48-098-02, 48-098-04, 48-098-04-S
• Kohler: 41-098-05, 45-098-05, 48-098-01, 48-098-05
• Kohler: A277214, A277599
• John Deere: AM34753, AM37725
• Bobcat: 6512287

SPECIFICATIONS:
• Starter Type: Permanent Magnet Direct Drive (PMDD)
• Input: 12 Volts DC
• Rotation: Counterclockwise (CCW)
• Drive: 9 Teeth, 36.5mm / 1.437" Gear OD
• Case: 129.2mm / 5.07" Field Length
• Mount: Three 5/16-18 Threaded Ears
• Mount: One 6.6mm Unthreaded Hole on Mounting Plate
• Weight: 7.39 lbs / 3.36 kg
• Condition: New Direct ReplacementPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
STARTER MOTOR APPLICATION GUIDE:

Kohler K-482 Engine (18HP):
• Displacement: 48 Cubic Inches (782cc)
• Configuration: Opposed Twin Cylinder, Air-Cooled
• Bore x Stroke: 82.6mm x 73.0mm (3.25" x 2.87")
• Used In: Garden Tractors, Industrial Equipment, Generators

Kohler K-532 Engine (20HP):
• Displacement: 53 Cubic Inches (868cc)
• Configuration: Opposed Twin Cylinder, Air-Cooled
• Bore x Stroke: 85.7mm x 76.2mm (3.37" x 3.0")
• Used In: Lawn Tractors, Skid Steers, Industrial Equipment
• John Deere 400 Lawn Tractor Rated 19.9HP (1975-1982)

Kohler K-582 Engine (23HP):
• Displacement: 58 Cubic Inches (950cc)
• Configuration: Opposed Twin Cylinder, Air-Cooled
• Bore x Stroke: 88.9mm x 76.2mm (3.5" x 3.0")
• Used In: Bobcat Skid Steers, Heavy-Duty Garden Tractors

Kohler Command PRO:
• CS4 - 4HP (Spec 9615xx, 9715xx) - Single Cylinder OHV
• CS6 - 6HP (Spec 9615xx, 9715xx) - Single Cylinder OHV

John Deere 400 Lawn Tractor:
• Engine: Kohler K-532 Rated 19.9HP
• Years: 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
• Type: Hydrostatic Drive Garden Tractor

Bobcat 520 Skid Steer Loader:
• Engine: Kohler K-582S Gasoline
• Years: 1976, 1977
• First B-Series Design Skid Steer

Bobcat 530 Skid Steer Loader:
• Engine: Kohler K-582S Gasoline
• Years: 1977, 1978, 1979, 1980, 1981
• 30 Series New Breed Design

Bobcat 540 Skid Steer Loader:
• Engine: Kohler K-582S Gasoline
• Years: 1981, 1982, 1983, 1984, 1985, 1986
• 40 Series Design
