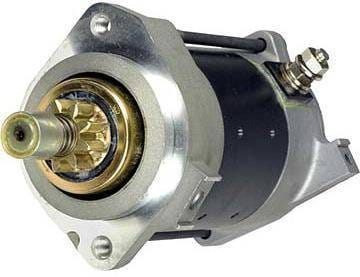

Starter Compatible With Yamaha Outboard 130Tlr 130Txr L130txr S130tlr S130trx 130Hp 2-Stroke

OEM PART NUMBERS:
• Yamaha: 6N7-81800-10-00 / 6N78180010
• Yamaha: 6N7-81800-01-00 / 6N78180001
• Yamaha: 6N7-81800-00-00 / 6N78180000
• Yamaha: 6K7-81800-10-00 / 6K78180010
• Yamaha: 61H-81800-00-00 / 61H818000000
• Yamaha: 69W-81800-00-00 / 69W818000000
• Yamaha: 6N7-WS818-01-00 / 99999-03938
• Hitachi: S114-552 / S114552 / S114-552A / S114552A
• Hitachi: S114-660 / S114660 / S114-660A / S114660A / S114-660B / S114660B



AFTERMARKET CROSS REFERENCE:
• Arco Marine: 3428
• Sierra: 18-6415
SPECIFICATIONS:
• Type: PMDD (Hitachi)
• Voltage: 12V
• Power: 1.4 kW
• Rotation: CCW (Counter-Clockwise)
• Tooth Count: 9
• Gear OD: 28.6mm / 1.126"
• Mounting: Dual M8-1.25 Threaded Holes
• Weight: 7.19 lbs / 3.27 kg
• Condition: New

YAMAHA OUTBOARD APPLICATIONS (1997-2008):
• 115HP: 115TJR/TLR/TR/TXR, B115TLR, C115TLR/TR/TXR, S115TLR/TXR (1997-2008)
• 130HP: 130TLR/TR/TXR, L130TXR/TR, S130TLR/TRX (1997-2004)
• 150HP: 150TJR/TLR/TR/TXR, C150/D150/DX150/L150/LX150/P150/PX150/S150/SX150/V150/VX150 (1997-2008)
• 175HP: 175TLR/TR, P175TLR, S175TXR (1997-2000)
• 200HP: 200TLR, L200TXR, LX200TXR, P200TLR, S200TXR, SX200TLR/TXR (1997-2004)
• 225HP: 225TLR (1997)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
YAMAHA OUTBOARD 115HP (1997-2008):
• 115TJR (1997-1999)
• 115TLR (1997-1998, 2002-2008)
• 115TR (2000)
• 115TXR (2002-2008)
• B115TLR (1998-1999)
• C115TLR (1997-1999) / C115TR (2000) / C115TXR (1997-1999)
• S115TLR (1997-1999) / S115TXR (1997-1999)

YAMAHA OUTBOARD 130HP (1997-2004):
• 130TLR (1997-1999, 2002-2004)
• 130TR (2000)
• 130TXR (2002-2004)
• L130TXR (1997-1999) / L130TR (2000)
• S130TLR (1997-1999) / S130TRX (1997-1999)

YAMAHA OUTBOARD 150HP (1997-2008):
• 150TJR (1997-1999)
• 150TLR (1997-1998)
• 150TR (2000)
• 150TXR (2001-2008)
• C150TLR (1997-1999) / C150TXR (1997-1999)
• D150TLR (1997-1999)
• DX150TLR (1999-2004)
• L150TXR (1997-1999)
• LX150TXR (1999-2001)
• P150TLR (1997-1999) / PX150TLR (1999)
• S150TLR (1997-1999) / S150TXR (1997-1999)
• SX150TLR (1999) / SX150TXR (1999-2004)
• V150TLR (2000-2004) / VX150TLR (2000-2004)

YAMAHA OUTBOARD 175HP (1997-2000):
• 175TLR (1997-1998)
• 175TR (2000)
• P175TLR (1997-1999)
• S175TXR (1997-1999)

YAMAHA OUTBOARD 200HP (1997-2004):
• 200TLR (1997-1998)
• L200TXR (1997-1999)
• LX200TXR (1999-2001)
• P200TLR (1997-1999)
• S200TXR (1997-1999)
• SX200TLR (2003-2004) / SX200TXR (2001-2004)

YAMAHA OUTBOARD 225HP (1997):
• 225TLR (1997)
