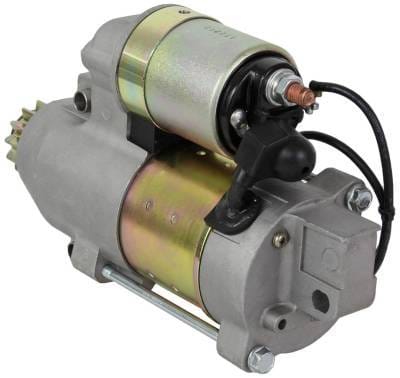

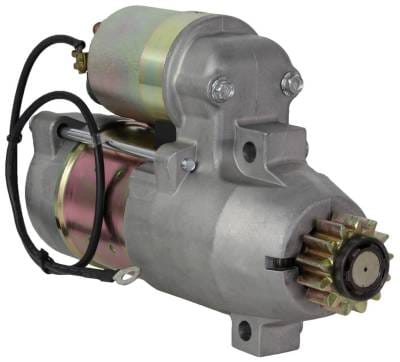

Starter Compatible With Yamaha 200Hp 225Hp V6 4-Stroke Outboard F200txr F225txr Lf200txr Lf225txr

OEM PART NUMBERS:
• Hitachi: S114-860 / S114860 / S114-860N / S114860N
• Yamaha: 69J-81800-00 / 69J8180000 / 69J-81800-00-00 / 69J818000000
• Yamaha: 69J-81800-01 / 69J8180001 / 69J-81800-01-00 / 69J818000100
• Mercury Marine: 50-888333T / 888333T / 888333T1



AFTERMARKET CROSS REFERENCE:
• API Marine: M0T5023N
• Arco Marine: 3434
• Sierra: 18-6833
SPECIFICATIONS:
• Type: Hitachi PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Rotation: CCW (Counter-Clockwise)
• Teeth: 13
• Gear OD: 39.7mm / 1.563in
• Mounting: 8.6mm ID Unthreaded (x3 ears)
• Weight: 8 lbs / 3.64 kg
• Condition: New

YAMAHA 200HP OUTBOARD APPLICATIONS (2002-2011):
• F200TXR / LF200TXR V6 3.3L 4-Stroke (2002-2011)

YAMAHA 225HP OUTBOARD APPLICATIONS (2002-2011):
• F225TUR / LF225TUR V6 3.3L 4-Stroke (2002-2006)
• F225TXR / LF225TXR V6 3.3L 4-Stroke (2002-2011)

MERCURY 225HP OUTBOARD APPLICATIONS (2003-2006):
• 225CXL / 225CXXL / 225XL / 225XXL EFI V6 4-Stroke (2003-2006)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
YAMAHA 200HP V6 4-STROKE OUTBOARD MOTORS (2002-2011):
• F200TXR 200HP V6 3.3L 4-Stroke (2002-2011)
• LF200TXR 200HP V6 3.3L 4-Stroke Counter-Rotating (2002-2011)

YAMAHA 225HP V6 4-STROKE OUTBOARD MOTORS (2002-2011):
• F225TUR 225HP V6 3.3L 4-Stroke (2002-2006)
• F225TXR 225HP V6 3.3L 4-Stroke (2002-2011)
• LF225TUR 225HP V6 3.3L 4-Stroke Counter-Rotating (2002-2006)
• LF225TXR 225HP V6 3.3L 4-Stroke Counter-Rotating (2002-2011)

MERCURY MARINE 225HP V6 EFI 4-STROKE OUTBOARD MOTORS (2003-2006):
• 225CXL EFI 225HP V6 4-Stroke (2003-2006)
• 225CXXL EFI 225HP V6 4-Stroke (2003-2006)
• 225XL EFI 225HP V6 4-Stroke (2003-2006)
• 225XXL EFI 225HP V6 4-Stroke (2003-2006)
