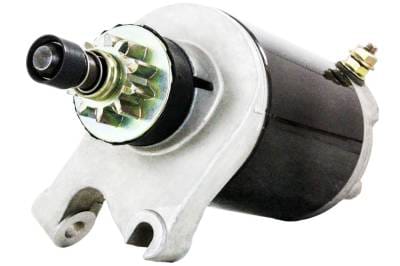

Starter Compatible With Evinrude Johnson Outboard 9.9Hp 15Hp E10e E10el E15e E15f E15r 15.6Ci 18.6Ci

OEM PART NUMBERS:
• OMC: 584608 / 0584608, 586275 / 0586275
• United Technologies: 5699940-M030SM / 5699940M030SM
• United Technologies: SM56999
• Sierra Marine: 18-5623 / 185623, 18-6863 / 186863

SPECIFICATIONS:
• Type: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Rotation: Counterclockwise (CCW)
• Tooth Count: 10
• Gear OD: 30.8mm / 1.213in
• Field Housing Length: 88mm / 3.46in
• Mounting Ear 1: 8.0mm Unthreaded
• Mounting Ear 2: 7.0mm Unthreaded
• Weight: 5.25 lbs / 2.39 kg
• Condition: New

EVINRUDE / JOHNSON OUTBOARD APPLICATIONS:
• Evinrude E10E/EL/F/FEX/FREL/T 9.9HP (1994-2001)
• Evinrude E15D/E/F/FREL/K/R 15HP (1995-2001)
• Johnson 10FEX/FREL 9.9HP 4-Stroke (1995-1998)
• Johnson 15FR/FREL 15HP 4-Stroke (1997-2001)

AFTERMARKET CROSS REFERENCE:
• Arco Marine: 5368
• Quicksilver: 8M6007317PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
EVINRUDE OUTBOARD - 9.9HP / 15HP:
• E10E 15.6ci 9.9/15HP (1999-2001)
• E10EL 15.6ci 9.9/15HP (1999-2001)
• E10F 15.6ci 9.9/15HP (1994-1998)
• E10FEX 4-Stroke 18.6ci 9.9HP (1995-1999)
• E10FREL 4-Stroke 18.6ci 9.9HP (1995-1999)
• E10T 15.6ci 9.9/15HP (1999-2001)
• E15D 18.6ci 15HP (1995)
• E15E 15.6ci 9.9/15HP (1999-2001)
• E15F 18.6ci 15HP (1995-2001)
• E15FREL 4-Stroke 18.6ci 15HP (1998)
• E15K 18.6ci 15HP (1995)
• E15R 15.6ci 9.9/15HP (1999-2001)

JOHNSON OUTBOARD - 9.9HP / 15HP:
• 10FEX 4-Stroke 18.6ci 9.9HP (1995-1998)
• 10FREL 4-Stroke 18.6ci 9.9HP (1995-1998)
• 15FR 4-Stroke 18.6ci 15HP (1997-2001)
• 15FREL 4-Stroke 18.6ci 15HP (1998)
