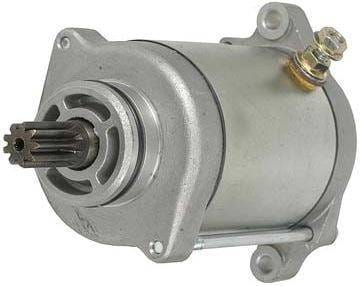

Starter Compatible With Arctic Cat Mitsuba 500 650 H1 Tbx Trv Atv Utv 12V 9 Tooth Sm13511 0825-012

ARCTCO OEM PART NUMBERS:
• 3545-012
• 0825-012
• 3545012 (no dashes)
• 0825012 (no dashes)

MITSUBA PART NUMBERS:
• SM13511

SPECIFICATIONS:
• Unit Type: Mitsuba
• Type: PMDD
• Voltage: 12V
• Rotation: Clockwise (CW)
• Teeth/Splines: 9
• Pinion/Splines OD: 14.2mm / 0.559in
• Mounting Hole 1: 6.0mm ID Unthreaded
• Mounting Hole 2: 6.0mm ID Unthreaded
• Weight: 3.77 lbs / 1.71 kgPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
ARCTIC CAT 500 ATV/UTV APPLICATIONS:
• Arctic Cat ATV 500 4X4 Automatic TBX 493cc Mitsuba System (2002-2006): 2002, 2003, 2004, 2005, 2006
• Arctic Cat ATV 500 4X4 Automatic TRV 493cc Mitsuba System (2004-2008): 2004, 2005, 2006, 2007, 2008
• Arctic Cat ATV 500 4X4 Hunter Automatic LE 493cc Mitsuba System (2001)
• Arctic Cat UTV 500 TRV 493cc Mitsuba System (2006)

ARCTIC CAT 650 H1 ATV/UTV APPLICATIONS:
• Arctic Cat ATV 650 H1 4X4 Automatic 641cc Mitsuba System (2005-2007): 2005, 2006, 2007
• Arctic Cat ATV 650 H1 4X4 SE 641cc Mitsuba System (2006)
• Arctic Cat ATV 650 H1 TBX 641cc Mitsuba System (2007)
• Arctic Cat ATV 650 H1 TRV 641cc Mitsuba System (2007)
• Arctic Cat UTV Prowler XT 650 H1 641cc Mitsuba System (2006-2007): 2006, 2007
