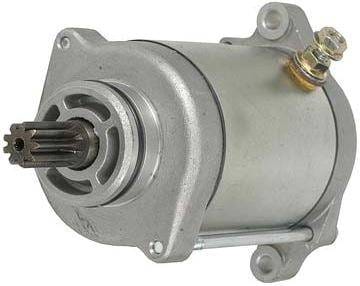

Starter Compatible With Arctic Cat Mitsuba 400 2X4 4X4 500 4X4 Atv 12V 9 Tooth 0825-001 3545-015

ARCTCO OEM PART NUMBERS:
• 0825-001
• 3545-015
• 0825001 (no dashes)
• 3545015 (no dashes)

MITSUBA PART NUMBERS:
• SM13487

SPECIFICATIONS:
• Unit Type: Mitsuba
• Type: PMDD
• Voltage: 12V
• Rotation: Clockwise (CW)
• Tooth Count: 9
• Gear OD: 14.2mm / 0.559in
• Mounting Ear 1: 6.0mm ID Unthreaded
• Mounting Ear 2: 6.0mm ID Unthreaded
• Weight: 3.77 lbs / 1.71 kgPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
ARCTIC CAT 400 ATV APPLICATIONS:
• Arctic Cat ATV 400 2X4 376cc Mitsuba System (1998-2002): 1998, 1999, 2000, 2001, 2002
• Arctic Cat ATV 400 4X4 376cc Mitsuba System (1998-2002): 1998, 1999, 2000, 2001, 2002

ARCTIC CAT 500 ATV APPLICATIONS:
• Arctic Cat ATV 500 4X4 493cc Mitsuba System (2002-2007): 2002, 2003, 2004, 2005, 2006, 2007
• Arctic Cat ATV 500 4X4 Automatic 493cc Mitsuba System (2000-2007): 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
• Arctic Cat ATV 500 4X4 Automatic (incl. 500i) 493cc Mitsuba System (2002)
• Arctic Cat ATV 500 4X4 Automatic LE 493cc Mitsuba System (2005-2006): 2005, 2006
• Arctic Cat ATV 500 4X4 Automatic MRP 493cc Mitsuba System (2003)
