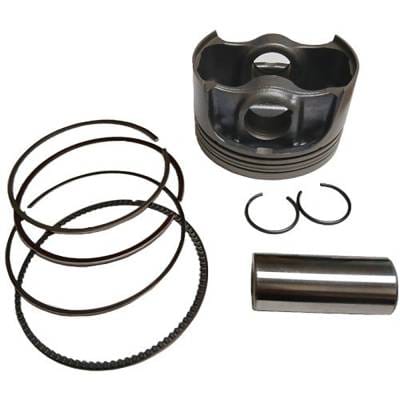

Standard Bore Piston Kit With Rings Compatible With 2004-Present Mercury Verado 135Hp 150Hp 175Hp

OEM CROSS-REFERENCE PART NUMBERS:
• 326764 (wrist pin)
• 326765 (circlip retainers)

SPECIFICATIONS:
• Type: Piston Kit with Ring Set, Wrist Pin, and Circlip Retainers
• Size: Standard
• Bore: 3.150" (80mm) Standard
• Engine: L4 1.7L / L6 2.6L 4-Stroke Supercharged DOHC
• Horsepower: 135HP-300HP
• Material: Cast Aluminum
• Kit Quantity: 1 Cylinder (order 4 for L4 or 6 for L6)

COMPATIBILITY:
• 2004-Present Mercury Verado L4 135HP-200HP
• 2004-Present Mercury Verado L6 200HP-300HP
• Symmetrical design — same piston for all cylindersPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
MERCURY VERADO SUPERCHARGED 4-STROKE OUTBOARD ENGINES (2004-Present):

VERADO L4 1.7L SUPERCHARGED DOHC (3.150"/80mm BORE):
• 135HP Verado L4 Supercharged (2004-Present)
• 150HP Verado L4 Supercharged (2004-Present)
• 175HP Verado L4 Supercharged (2004-Present)
• 200HP Verado L4 Supercharged (2004-Present)

VERADO L6 2.6L SUPERCHARGED DOHC (3.150"/80mm BORE):
• 200HP Verado L6 Supercharged (2004-Present)
• 225HP Verado L6 Supercharged (2004-Present)
• 250HP Verado L6 Supercharged (2004-Present)
• 275HP Verado L6 Supercharged (2004-Present)
• 300HP Verado L6 Supercharged (2004-Present)

ENGINE SPECIFICATIONS:
• Configuration: L4 1.7L or L6 2.6L 4-Stroke Supercharged DOHC
• Standard Bore: 3.150" (80mm)
• Engine Type: 4-Stroke Supercharged DOHC

IMPORTANT NOTES:
• Symmetrical pistons — same piston for all cylinders
• L4: order 4 kits / L6: order 6 kits for complete rebuild
• 3.150" (80mm) bore — verify bore size matches your engine
• Verify OEM part number before ordering
