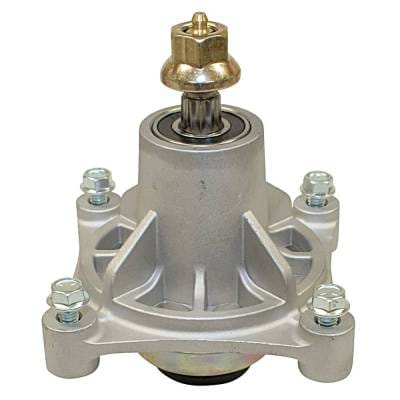

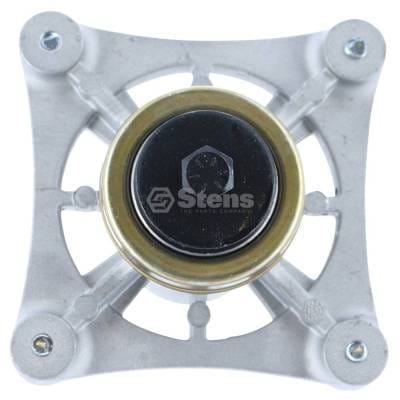

Spindle Assembly Compatible With Husqvarna Gth2248xpa Gth2548 Yth2148a Yth2748 Rz4621 Rz4622 48-Inch

OEM PART NUMBERS:
• AYP/Husqvarna: 532174356 / 532174358 • AYP/Husqvarna: 174358 / 539107515
SPECIFICATIONS:
• Type: Deck Spindle Assembly

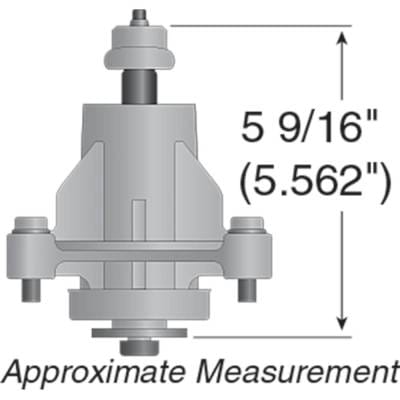

• Height: 5-9/16" (141mm)
• Mounting Hole Distance: 5-5/8" (143mm)
• Housing: 4-Bolt Short Housing
• Shaft Mount: 5-Point Star Center Hole
• Grease Fitting: Yes (threaded end)
• Deck Sizes: 46", 48", 54"
• Year Range: 2002 and Newer
• Condition: New

APPLICATION:
• Husqvarna GTH2248XPA / GTH2548 / YTH2148A / YTH2748 — 48-Inch Garden Tractors • Husqvarna RZ4621 / RZ4622 — 48-Inch Zero Turn Mowers • Husqvarna 965880801 / 965880901 / 965881001

Husqvarna GTH2248XPA GTH2548 YTH2148A YTH2748 RZ4621 RZ4622 Deck Spindle Assembly — 532174356 532174358
Deck spindle assembly for Husqvarna GTH2248XPA, GTH2548, YTH2148A, YTH2748, RZ4621, and RZ4622. Also covers 965880801, 965880901, and 965881001. Replaces OEM 532174356 and 532174358. Height 5-9/16", 4-bolt housing, 5-point star blade mount.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
AYP / ELECTROLUX RIDING MOWERS:
• 46", 48" & 54" Deck (2002 and Newer)
• PDGT26H48A / PR25PH48STB / PRGT22H48A
• SP25PH48STA / SPGT25H48A / WAGT20H48STA

CRAFTSMAN RIDING LAWN TRACTORS — 48" DECK:
• 917204130 / 917250980 / 917251120 / 917251160
• 917272240 / 917272241 / 917272242 / 917272243 / 917272244 / 917272245 / 917272246 / 917272248 / 917272264
• 917273240 / 917273241 / 917273280 / 917273610 / 917273620 / 917273621 / 917273622
• 917273660 / 917273661 / 917273663 / 917273664
• 917275010 / 917275011 / 917275013 / 917275021 / 917275223 / 917275240 / 917275242
• 917275280 / 917275282 / 917275700 / 917275701 / 917275740 / 917275900 / 917275901 / 917275902
• 917276010 / 917276011 / 917276013 / 917276020 / 917276021 / 917276022
• 917276070 / 917276071 / 917276080 / 917276081
• 917276310 / 917276320 / 917276350 / 917276351 / 917276360 / 917276361
• 917277780 / 917277800
• Named Models: GT5000 / DYT4000 / DLT2000

DIXON ZERO TURN MOWERS:
• SPEED-ZTR-46

HUSQVARNA GARDEN TRACTORS — 48" DECK:
• GT2248 / GTH2248 / GTH2248XP / GTH2248XPA / GTH250 / GTH2548
• 460ZX / 917277820 / 917279080 / 917279081
• 954170026 / 954170055 / 954567086 / 954567888 / 954567895 / 954568489 / 954571977 / 954571984
• 954572004 / 954572035 / 954572134 / 96013000700 / 96015000100 / 96015000101 / 96015000102 / 96015000103
• 960230003 / 96023000300 / EZ4624BF / EZ4822BI / GTH2248XPA

HUSQVARNA YTH SERIES — 48" DECK:
• YTH1848XP / YTH1848XPF / YTH2048A / YTH2148 / YTH2148A / YTH2248 / YTH2448 / YTH2548A / YTH2748
• 965880801 / 965880901 / 965881001 / 965881201 / 965921501 / 966503401 / 966582301
• 966659101 / 966676501 / 966678201 / 967009805 / 967150901 / 967153002 / 967176201
• 967271401 / 967271501 / 967271601 / 967323901 / 967323902 / 967323903
• 967324001 / 967324002 / 967665401 / 967844501 / 967924601
• 968999219 / 968999220 / 968999250 / 968999276 / 968999301 / 968999512 / 968999513 / 968999696 / 970467401

HUSQVARNA Z / EZ / LSZ ZERO TURN MOWERS:
• Z246 / Z246i / Z4218 / Z4219 / Z4818 / Z4822 / Z4824 / Z4826 / Z5426
• EZ4220 / EZ4624BF / EZ4822BI / EZ4824 / EZ5226
• LSZ4622 / LSZ5422 / LSZ5424

HUSQVARNA RZ ZERO TURN MOWERS:
• RZ4219 / RZ4619 / RZ4620 / RZ4621 / RZ4622 / RZ4622T / RZ4623
• RZ5422 / RZ5424

HUSQVARNA ADDITIONAL MODELS:
• GTH2548 (96023000300) / RZ4219 (954572134) / Z4824 / GTH2248XPA
• 967271401 / 967271601 / 968999512 / 970467401

JONSERED LAWN TRACTORS:
• LT19A / LT2119A / LT2122A / LT2122A2
• 954130071 / 954130090 / 954130214
• 96011001100 / 96011001101 / 96011013000 / 96011022600

POULAN / POULAN PRO RIDING MOWERS:
• COGT22H48A / DB24H48YT / DB27H48YT / POGT20H48STA / POGT20T48STA
• PRO-CO24H48STA / PRO-DPR22H48STA / PRO-P46ZX / PRO-PD20PH48STA / PRO-PD22PH48STA
• PRO-PD25PH48STA / PRO-PK23H48YT / PRO-PRGT25H48A / PRO-XT24H48YT / PRO-967721801

NOTE: Fits AYP 46", 48" & 54" decks 2002 and newer. 5-point star blade mount. Verify OEM part number from your original unit before ordering to ensure proper fitment.
