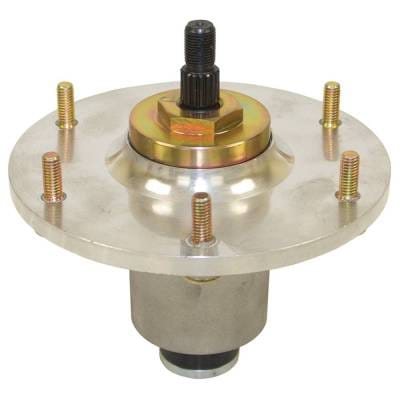

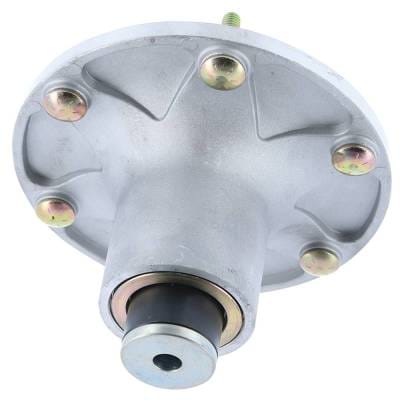

Spindle Assembly Compatible With Exmark Lazer Z Xs D-Series Ds-Series 60 66 72 Inch Zero Turn Mower

OEM PART NUMBERS:
• Exmark: 109-6917 / 1096917
• Exmark: 109-2102 / 1092102 (with hardware)
• Exmark: 109-0764 / 1090764 (superseded)
• Exmark: 103-9541 / 1039541
• Exmark: 103-9539 / 1039539
• Exmark: 116-0725 / 1160725

SPECIFICATIONS:
• Type: Spindle Housing Assembly
• Overall Height: 7-1/2" (7.5")
• Mounting: 6 Threaded Bolt Holes
• Material: Heavy-Duty Cast Metal
• Finish: Black
• Condition: New

APPLICATION:
• Exmark Lazer Z X-Series 48"/52"/60"/72" Zero Turn Mower
• Exmark Lazer Z Z-Series 48"/52"/60"/72" Zero Turn Mower
• Exmark Lazer Z XS 60"/66"/72" Diesel and Air Cooled
• Exmark Lazer Z DS-Series / D-Series 60"/72" Diesel
• Exmark Lazer Z HP 56"
• Exmark Lazer Z Air Cooled 48"/52"/60"/72"
• Exmark Lazer Z S-Series Propane 60"
• Exmark Next Lazer Z Air Cooled / Propane
• S/N 600,000+ Triton decks; 790,000+ XS Air Cooled

Spindle Housing - Exmark Lazer Z Mowers
OEM-quality spindle housing assembly for Exmark Lazer Z zero-turn mowers with 48, 52, 60, 66, or 72 inch cutting decks. Compatible with X-Series, Z-Series, XS Diesel and Air Cooled, DS-Series, D-Series, HP, S-Series Propane, and Next Lazer Z. Features 7-1/2 inch height and 6 threaded bolt holes. Replaces Exmark 109-6917, 109-2102, 109-0764, 103-9541, and 116-0725.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
EXMARK LAZER Z X-SERIES ZERO TURN MOWERS:
• LZX921GKA606A1/LZX921GKA606A5 - 60" Deck Kawasaki
• LZX921GKA72600/LZX921GKA726A1/LZX921GKA726A5/LZX921GKA726B1/LZX921GKA726C1 - 72" Deck Kawasaki
• LZX921KA606/LZX921KA726 - 60"/72" Deck Kawasaki
• LZX940AKC606T0/LZX940AKC606TO - 60" Deck Kohler Command
• LZX940EKC606/LZX940EKC60600/LZX940EKC60RT0 - 60" Deck EFI Kohler
• LZX940EKC72RT0/LZX940EKC72RTO - 72" Deck EFI Kohler
• LZX940KC606/LZX940KC726 - 60"/72" Deck Kohler Command
• LZX980AKC726T0 - 72" Deck Kohler Command
• LZX980EKC606R1/LZX980EKC606W0 - 60" Deck EFI Kohler
• LZX980EKC726/LZX980EKC72600/LZX980EKC726R1/LZX980EKC726T0/LZX980EKC726W0 - 72" Deck EFI Kohler
• LZX980KC606/LZX980KC726 - 60"/72" Deck Kohler Command
• LZX993EBV606X1/LZX993EBV726X1 - 60"/72" Deck Briggs Vanguard EFI

EXMARK LAZER Z Z-SERIES ZERO TURN MOWERS:
• LZZ23KC486/LZZ23KC526 - 48"/52" Deck 23HP Kohler Command
• LZZ24KA526/LZZ24KA526CA - 52" Deck 24HP Kawasaki
• LZZ26KC606 - 60" Deck 26HP Kohler Command
• LZZ27KC526/LZZ27KC526CA - 52" Deck 27HP Kohler Command
• LZZ27KC606/LZZ27KC606CA - 60" Deck 27HP Kohler Command
• LZZ29KA606/LZZ29KA606LP - 60" Deck 29HP Kawasaki
• LZZ29KCE606 - 60" Deck 29HP Kohler Command EFI
• LZZ34KA606/LZZ34KA726 - 60"/72" Deck 34HP Kawasaki
• LZZ34KC606/LZZ34KC726 - 60"/72" Deck 34HP Kohler Command
• LZZ38KC606/LZZ38KC726 - 60"/72" Deck 38HP Kohler Command

NOTE: Also fits models from Group A listings (Lazer Z X-Series, XS, HP, Air Cooled, D-Series, DS-Series, S-Series). Verify OEM part number before ordering.
