Spindle Assembly Compatible With Dixon Speed-Ztr-46 Husqvarna Z246 Z246i 917279080 917277820 48-Inch

OEM PART NUMBERS:
• AYP/Husqvarna: 532192656 / 539107515 • AYP/Husqvarna: 174356 / 532174356
SPECIFICATIONS:
• Type: Deck Spindle Assembly

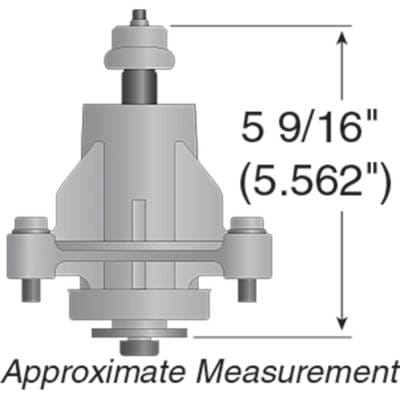

• Height: 5-9/16" (141mm)
• Mounting Hole Distance: 5-5/8" (143mm)
• Housing: 4-Bolt Short Housing
• Shaft Mount: 5-Point Star Center Hole
• Grease Fitting: Yes (threaded end)
• Deck Sizes: 46", 48", 54"
• Year Range: 2002 and Newer
• Condition: New

APPLICATION:
• Dixon SPEED-ZTR-46 — Zero Turn Mower • Husqvarna Z246 / Z246i / 917279080 / 917279081 / 917277820 — 48-Inch Deck

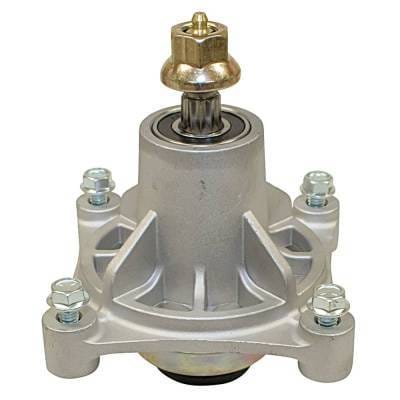

Dixon SPEED-ZTR-46 Husqvarna Z246 Z246i 917279080 Deck Spindle Assembly — 532192656 539107515
Deck spindle assembly for Dixon SPEED-ZTR-46 and Husqvarna Z246, Z246i, 917279080, 917279081, and 917277820. Replaces OEM 532192656 and 539107515. Height 5-9/16", 4-bolt housing, 5-point star blade mount. Includes shaft, bearings, and dust cap.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
AYP / ELECTROLUX RIDING MOWERS:
• 46", 48" & 54" Deck (2002 and Newer)
• PDGT26H48A / PR25PH48STB / PRGT22H48A
• SP25PH48STA / SPGT25H48A / WAGT20H48STA

CRAFTSMAN RIDING LAWN TRACTORS — 48" DECK:
• 917204130 / 917250980 / 917251120 / 917251160
• 917272240 / 917272241 / 917272242 / 917272243 / 917272244 / 917272245 / 917272246 / 917272248 / 917272264
• 917273240 / 917273241 / 917273280 / 917273610 / 917273620 / 917273621 / 917273622
• 917273660 / 917273661 / 917273663 / 917273664
• 917275010 / 917275011 / 917275013 / 917275021 / 917275223 / 917275240 / 917275242
• 917275280 / 917275282 / 917275700 / 917275701 / 917275740 / 917275900 / 917275901 / 917275902
• 917276010 / 917276011 / 917276013 / 917276020 / 917276021 / 917276022
• 917276070 / 917276071 / 917276080 / 917276081
• 917276310 / 917276320 / 917276350 / 917276351 / 917276360 / 917276361
• 917277780 / 917277800
• Named Models: GT5000 / DYT4000 / DLT2000

DIXON ZERO TURN MOWERS:
• SPEED-ZTR-46

HUSQVARNA GARDEN TRACTORS — 48" DECK:
• GT2248 / GTH2248 / GTH2248XP / GTH2248XPA / GTH250 / GTH2548
• 460ZX / 917277820 / 917279080 / 917279081
• 954170026 / 954170055 / 954567086 / 954567888 / 954567895 / 954568489 / 954571977 / 954571984
• 954572004 / 954572035 / 954572134 / 96013000700 / 96015000100 / 96015000101 / 96015000102 / 96015000103
• 960230003 / 96023000300 / EZ4624BF / EZ4822BI / GTH2248XPA

HUSQVARNA YTH SERIES — 48" DECK:
• YTH1848XP / YTH1848XPF / YTH2048A / YTH2148 / YTH2148A / YTH2248 / YTH2448 / YTH2548A / YTH2748
• 965880801 / 965880901 / 965881001 / 965881201 / 965921501 / 966503401 / 966582301
• 966659101 / 966676501 / 966678201 / 967009805 / 967150901 / 967153002 / 967176201
• 967271401 / 967271501 / 967271601 / 967323901 / 967323902 / 967323903
• 967324001 / 967324002 / 967665401 / 967844501 / 967924601
• 968999219 / 968999220 / 968999250 / 968999276 / 968999301 / 968999512 / 968999513 / 968999696 / 970467401

HUSQVARNA Z / EZ / LSZ ZERO TURN MOWERS:
• Z246 / Z246i / Z4218 / Z4219 / Z4818 / Z4822 / Z4824 / Z4826 / Z5426
• EZ4220 / EZ4624BF / EZ4822BI / EZ4824 / EZ5226
• LSZ4622 / LSZ5422 / LSZ5424

HUSQVARNA RZ ZERO TURN MOWERS:
• RZ4219 / RZ4619 / RZ4620 / RZ4621 / RZ4622 / RZ4622T / RZ4623
• RZ5422 / RZ5424

HUSQVARNA ADDITIONAL MODELS:
• GTH2548 (96023000300) / RZ4219 (954572134) / Z4824 / GTH2248XPA
• 967271401 / 967271601 / 968999512 / 970467401

JONSERED LAWN TRACTORS:
• LT19A / LT2119A / LT2122A / LT2122A2
• 954130071 / 954130090 / 954130214
• 96011001100 / 96011001101 / 96011013000 / 96011022600

POULAN / POULAN PRO RIDING MOWERS:
• COGT22H48A / DB24H48YT / DB27H48YT / POGT20H48STA / POGT20T48STA
• PRO-CO24H48STA / PRO-DPR22H48STA / PRO-P46ZX / PRO-PD20PH48STA / PRO-PD22PH48STA
• PRO-PD25PH48STA / PRO-PK23H48YT / PRO-PRGT25H48A / PRO-XT24H48YT / PRO-967721801

NOTE: Fits AYP 46", 48" & 54" decks 2002 and newer. 5-point star blade mount. Verify OEM part number from your original unit before ordering to ensure proper fitment.
