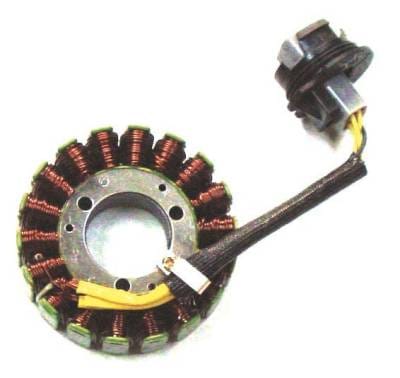

Rotax 787 Rfi Stator Compatible With Sea-Doo Gtx Rfi 800 1998-2002 Gti Le Rfi Gsx Rfi 800 3D Rfi

OEM PART NUMBERS:
• Sea-Doo / BRP: 290887950 / 290-887-950
• Sea-Doo / BRP: 420887951 / 420-887-951
• Sea-Doo / BRP: 420887950 / 420-887-950 (cross-ref)

SPECIFICATIONS:
• Type: Armature / Stator Coil (Magneto Stator)
• Engine: Rotax 787 RFI (782cc) Twin-Cylinder 2-Stroke 110HP
• Injection: RFI (Rotax Fuel Injection — semi-direct)
• Poles: 18 | Wires: 4 | Plugs: 1
• OD: 93mm | ID: 35mm | Thickness: 22mm
• Wire Resistance (Alternator): Yellow-Yellow = 0.6Ω ±20%
• Condition: New

SEA-DOO 800 RFI APPLICATIONS:
• GTX RFI 800cc Rotax 787 RFI (1998-2002)
• GSX RFI 800cc Rotax 787 RFI (1999-2000)
• GTI RFI 800cc Rotax 787 RFI (2003-2005)
• GTI LE RFI 800cc Rotax 787 RFI (2003-2005)
• 3D RFI 800cc Rotax 787 RFI (2005)PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
SEA-DOO GTX RFI 800 (Rotax 787 RFI Twin 2-Stroke 110HP):
• GTX RFI 800cc Rotax 787 RFI Twin-Cylinder 2-Stroke 110HP (1998)
• GTX RFI 800cc Rotax 787 RFI Twin-Cylinder 2-Stroke 110HP (1999)
• GTX RFI 800cc Rotax 787 RFI Twin-Cylinder 2-Stroke 110HP (2000)
• GTX RFI 800cc Rotax 787 RFI Twin-Cylinder 2-Stroke 110HP (2001)
• GTX RFI 800cc Rotax 787 RFI Twin-Cylinder 2-Stroke 110HP (2002)

SEA-DOO GSX RFI 800 (Rotax 787 RFI Twin 2-Stroke 110HP):
• GSX RFI 800cc Rotax 787 RFI Twin-Cylinder 2-Stroke 110HP (1999)
• GSX RFI 800cc Rotax 787 RFI Twin-Cylinder 2-Stroke 110HP (2000)

SEA-DOO GTI RFI 800 (Rotax 787 RFI Twin 2-Stroke 110HP):
• GTI RFI 800cc Rotax 787 RFI Twin-Cylinder 2-Stroke 110HP (2003)
• GTI RFI 800cc Rotax 787 RFI Twin-Cylinder 2-Stroke 110HP (2004)
• GTI RFI 800cc Rotax 787 RFI Twin-Cylinder 2-Stroke 110HP (2005)

SEA-DOO GTI LE RFI 800 (Rotax 787 RFI Twin 2-Stroke 110HP):
• GTI LE RFI 800cc Rotax 787 RFI Twin-Cylinder 2-Stroke 110HP (2003)
• GTI LE RFI 800cc Rotax 787 RFI Twin-Cylinder 2-Stroke 110HP (2004)
• GTI LE RFI 800cc Rotax 787 RFI Twin-Cylinder 2-Stroke 110HP (2005)

SEA-DOO 3D RFI 800 (Rotax 787 RFI Twin 2-Stroke 110HP):
• 3D RFI 800cc Rotax 787 RFI Twin-Cylinder 2-Stroke 110HP (2005)

STATOR SPECIFICATIONS:
• Type: Armature / Stator Coil
• Engine: Rotax 787 RFI (782cc) Twin-Cylinder 2-Stroke
• Injection: RFI (Rotax Fuel Injection — semi-direct fuel injection)
• Poles: 18
• Wires: 4 (1 plug connector)
• OD: 93mm | ID: 35mm | Thickness: 22mm
• Wire-to-Wire Resistance (Alternator): Yellow-Yellow = 0.6Ω ±20%
• Condition: New
