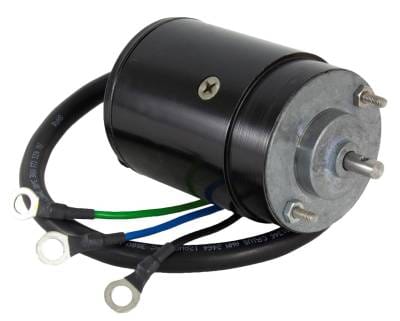

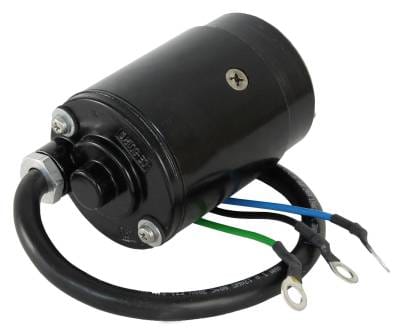

Power Tilt Trim Motor Compatible With Omc Stern Drive 120 2.5L 153Ci 140 3.0L 181Ci Gm Inline-4

OEM PART NUMBERS:
• OMC/BRP: 982069 / 0982069
• OMC/BRP: 982073 / 0982073
• OMC/BRP: 983318 / 0983318
• OMC/BRP: 979768 / 0979768
• OMC/BRP: 981638 / 0981638
• OMC/BRP: 979937 / 0979937
• ESQ4005 / ESQ4008 / ESQ4010 / ESQ4017
• 40-391 / 40-468
• Quicksilver: 8M6007538



AFTERMARKET CROSS REFERENCE:
• Arco Marine: 6211
• Sierra: 18-6764
SPECIFICATIONS:
• Type: Tilt & Trim Motor
• Voltage: 12V DC
• Rotation: Reversible
• Length: 5.457" / 138.6mm
• OD: 2.807" / 71.3mm
• Shaft OD: 0.315" / 8mm
• Shaft: 3.2mm OD Roll Pin Hole
• Connection: 3-Wire Harness with 3 Ring Terminals
• Weight: 6 lbs / 2.72 kg
• Condition: New

OMC STRINGER STERN DRIVE APPLICATIONS:
• OMC 120 / 2.5L Stern Drive — GM 2.5L 153CI Inline-4 (1979-1985)
• OMC 140 / 3.0L Stern Drive — GM 3.0L 181CI Inline-4 (1979-1985)
• Fits OMC Stringer "Select Trim" System (1979-1985)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
OMC STRINGER STERN DRIVE — GM 2.5L 153CI INLINE-4:
• OMC 120 Stern Drive — GM 2.5L 153CI Inline-4 (1979-1981)
• OMC 2.5L Stern Drive — GM 2.5L 153CI Inline-4 (1982-1985)

OMC STRINGER STERN DRIVE — GM 3.0L 181CI INLINE-4:
• OMC 140 Stern Drive — GM 3.0L 181CI Inline-4 (1979-1981)
• OMC 3.0L Stern Drive — GM 3.0L 181CI Inline-4 (1982-1985)

NOTE:
• OMC renamed stern drive models from HP ratings (120/140) to displacement designations (2.5L/3.0L) in 1982
• Fits OMC Stringer "Select Trim" system — 3-wire connection with ring terminal ends
