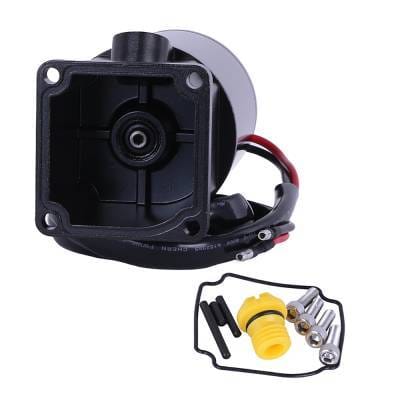

Power Tilt Trim Motor Compatible With Mercury Mariner Force 50-125 Hp 10850 10827N 82-7866 12V

MERCURY MARINE OEM PART NUMBERS:
• 809885A1
• 809885A2
• 809885T2
• 811674
• 811699
• 813447
• 819479A1
• 819480A1
• 885654T1
• 885654T2
• 893907A02
• 8M0055011

ARCO MARINE OEM PART NUMBERS:
• 6276

API MARINE OEM PART NUMBERS:
• PT496NK-2 (PT496NK2)
• PT497NK

SIERRA MARINE OEM PART NUMBERS:
• 18-6777

OTHER OEM PART NUMBERS:
• Lester: 10827, 10850
• WAI: 10827N, 82-7866
• EMP Parts: 4-6777
• J&N: 430-22008
• MES: T1075M

SPECIFICATIONS:
• Voltage: 12V DC
• Rotation: Reversible / Bi-Directional
• Field Housing OD: 72.8mm / 2.866 in
• Overall Length: 175mm / 6.890 in
• Shaft Type: Hollow Hex Shaft
• Weight: 4.72-6 lbsPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
MERCURY MARINE OUTBOARD APPLICATIONS:
• Mercury 30 HP Outboard - Tilt & Trim
• Mercury 35 HP Outboard - Tilt & Trim
• Mercury 40 HP Outboard - Tilt & Trim
• Mercury 45 HP Outboard - Tilt & Trim
• Mercury 50 HP Outboard - Tilt & Trim
• Mercury 55 HP Outboard - Tilt & Trim
• Mercury 60 HP Outboard - Tilt & Trim
• Mercury 65 HP Outboard - Tilt & Trim
• Mercury 75 HP Outboard - Tilt & Trim
• Mercury 80 HP Outboard - Tilt & Trim
• Mercury 90 HP Outboard - Tilt & Trim
• Mercury 100 HP Outboard - Tilt & Trim
• Mercury 115 HP Outboard - Tilt & Trim
• Mercury 120 HP Outboard - Tilt & Trim
• Mercury 125 HP Outboard - Tilt & Trim

MARINER OUTBOARD APPLICATIONS:
• Mariner 50-125 HP Outboard Motors (1992-1995)

FORCE MARINE OUTBOARD APPLICATIONS:
• Force 50-125 HP Outboard Motors
• Force 75EL, 75ELPT (1996-1999)
• Force 90ELPT, 90EXLPT (1996-1999)
• Force 120ELPT, 120EXLPT (1996-1999)

MOTOR SPECIFICATIONS:
• Voltage: 12V DC
• Rotation: Reversible / Bi-Directional
• Field Housing OD: 72.8mm / 2.866 in
• Overall Length: 175mm / 6.890 in
• Shaft Type: Hollow Hex Shaft
• Connection: 2-Wire with Bullet Connectors
• Design: Late Style Single Ram
• Weight: 4.72-6 lbs
