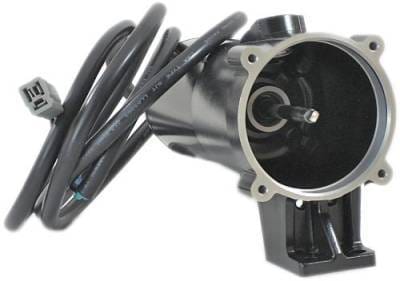

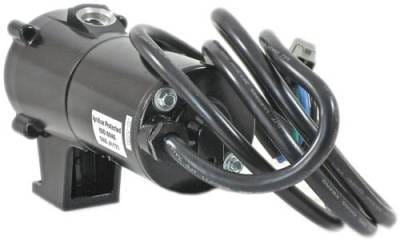

Power Tilt Trim Motor Compatible With Chrysler Marine 75Hp 85Hp 100Hp 115Hp 125Hp 140Hp Outboard

OEM PART NUMBERS:
• Chrysler Marine: 44-9541-1 / 4495411 / 45-5541 / 455541
• Force: F17556 / F17563 / F17564 / F17568
• Force: FK654541 / F654541
• OMC: 172543 / 0172543 / 382715 / 0382715
• ESZ4009 / ESZ4012 / ESZ4014 / ETX4001
• 40-567 / 40567
• Quicksilver: 8M6007521



AFTERMARKET CROSS REFERENCE:
• API Marine: PT112N
• Arco Marine: 6216
• 18-6762
SPECIFICATIONS:
• Type: Tilt Trim Motor with Reservoir
• Design:
• Voltage: 12V
• Rotation: Reversible
• Connection: 3-Wire Configuration
• Shaft OD: 7.4mm / 0.291in
• Shaft: 3.5mm Drive Tang
• Field Housing OD: 77mm / 3.031in
• Overall Length: 220mm / 8.661in
• Reservoir Base Diameter: 3.5in
• O-Ring Included
• Weight: 8 lbs
• Condition: New

APPLICATIONS SUMMARY:
• Chrysler Marine 75-140HP (1977-1984)
• Evinrude/Johnson 65-135HP (1972-1977)
• Force 75-135HP / OMC 75-135HP / U.S. Marine 75-135HP
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
CHRYSLER MARINE OUTBOARD APPLICATIONS (1977-1984):
• 75HP (1979-1984)
• 85HP (1977-1984)
• 90HP (1983-1984)
• 100HP (1979-1984)
• 105HP (1982-1984)
• 115HP (1977-1984)
• 125HP (1981-1984)
• 140HP (1979-1984)

EVINRUDE OUTBOARD APPLICATIONS (1972-1977):
• E65 65HP (1973)
• E70 70HP (1974-1977)
• E75 75HP (1975-1977)
• E85 85HP (1972-1977)
• E100 100HP (1972)
• E115 115HP (1973-1977)
• E125 125HP (1972)
• E135 135HP (1973-1976)

JOHNSON OUTBOARD APPLICATIONS (1972-1977):
• All Models 65-135HP (1972-1977)

FORCE / OMC / U.S. MARINE APPLICATIONS:
• Force 75/85/90/115/120/135HP All Models
• OMC 75/90/115/120/130/135HP All Models
• U.S. Marine 75-135HP All Models

SYSTEM DETAILS:
• Design, 12V, 3-Wire, Includes Reservoir
• 3.5in Diameter Reservoir Base, O-Ring Included
