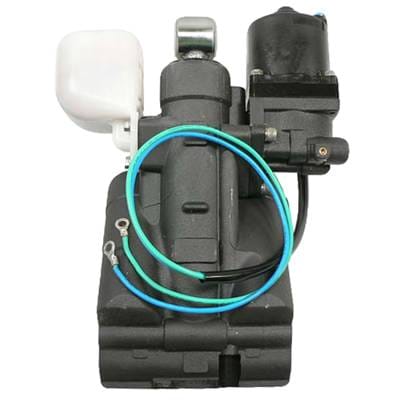

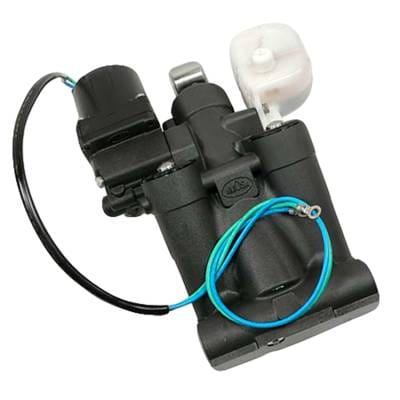

Power Tilt Trim Assembly Compatible With Yamaha Vz150 Vz175 Vz200 Vz225 Vz250 Vz300 Vmax Outboard

OEM PART NUMBERS:
• Suzuki: 48503-93J12 / 4850393J12
• Suzuki: 48503-94900-OED / 4850394900OED
• Yamaha: 63P-43800-03-00 / 63P438000300
• Yamaha: 64E-43800-02-40 / 64E438000240
• Yamaha: 68V-43800-03-40 / 68V438000340

SPECIFICATIONS:
• Type: Complete Tilt Trim Hydraulic Pump Assembly
• System: 3 Ram (SHOWA Style)
• Voltage: 12V
• Rotation: Reversible
• Motor OD: 76mm (2.992 in)
• Motor Length: 103mm (4.055 in)
• Shaft OD: 8mm (0.315 in)
• Shaft: 2.6mm Drive Tang
• Current Type: DC
• Condition: New

SUZUKI APPLICATIONS:
• Suzuki DF200 200HP 4-Stroke (2013-2016)
• Suzuki DF250 250HP 4-Stroke (2013-2016)
• Suzuki DF250AP 250HP 4-Stroke (2014+)

YAMAHA APPLICATIONS:
• Yamaha 150HP F150/LF150/VZ150 (2006-On)
• Yamaha 175HP VZ175 VMAX (2006-On)
• Yamaha 200HP Z200/LZ200/VZ200R (2006-On)
• Yamaha 225HP F225/VZ225H (2006-On)
• Yamaha 250HP VZ250F / 300HP VZ300B (2006-On)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
SUZUKI 4-STROKE OUTBOARD (2013-2016):
• DF200TL / DF200TX / DF200TXW 200HP 4-Stroke
• DF200TXZ / DF200TXZW / DF200ZX 200HP 4-Stroke
• DF250TX / DF250TXX / DF250TXZ / DF250TXXZ 250HP 4-Stroke
• DF250ZX / DF250ZXX 250HP 4-Stroke
• DF250SSTL / DF250STL / DF250TLSS 250HP 4-Stroke
• DF250AP / DF250APX / DF250APXX 250HP 4-Stroke (2014+)

YAMAHA OUTBOARD (2006-ON):
• F150TJR / F150TLR / F150TXR / F150AET1X 150HP 4-Stroke
• FL150AET1X / LF150TXR 150HP 4-Stroke
• VZ150TLR 150HP VMAX / VZ175TLR 175HP VMAX
• Z200TXR / LZ200TXR / VZ200RTLR 200HP
• F225TLR / VZ225HTLR 225HP
• VZ250FTLR 250HP VMAX / VZ300BTLR 300HP VMAX

NOTES:
• Complete 3-ram SHOWA style hydraulic tilt trim assembly
• Fits both Suzuki 4-stroke and Yamaha 2-stroke/4-stroke/VMAX models
