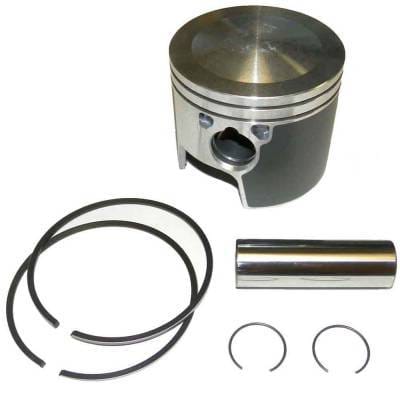

Port Side Piston Kit .010 Over Compatible With 1988-2001 Johnson Evinrude V4 V6 Loop Charge 90Hp

OEM CROSS-REFERENCE PART NUMBERS (PORT SIDE):
• 5006671 (port side piston)
• 435575
• 432072
• 5006672 (starboard reference)
• 435576
• 432073
• 5006684 (standard ring set)
• 5006685 (oversize ring set)
• 326764 (wrist pin)
• 326765 (circlip retainers)

SPECIFICATIONS:
• Type: Port Side Piston Kit with Ring Set, Wrist Pin, and Circlip Retainers
• Size: .010 Oversize
• Bore: 3.610" (.010 over 3.600" standard)
• Engine: V4 / V6 90-Degree Loop Charge 2-Stroke
• Horsepower: 90HP, 100HP, 105HP, 115HP, 150HP, 175HP
• Side: Port (Left)
• Material: Cast Aluminum
• Kit Quantity: 1 Cylinder

COMPATIBILITY:
• 1988-1998 Johnson/Evinrude 90HP V4 Loop Charge
• 1988-1989 Johnson/Evinrude 100HP V4 Loop Charge
• 1992-1994 Johnson/Evinrude 105HP V4 Commercial
• 1988-2001 Johnson/Evinrude 115HP V4 Loop Charge
• 1988-1992 Johnson/Evinrude 150HP V6 Loop Charge
• 1988-1992 Johnson/Evinrude 175HP V6 Loop Charge
• Port side pistons only — requires matching starboard pistons for complete rebuildPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
JOHNSON/EVINRUDE V4 & V6 LOOP CHARGE OUTBOARD ENGINES (1988-2001):

V4 90-DEGREE LOOPER MODELS:
• 90HP V4 Loop Charge (1988-1998)
• 100HP V4 Loop Charge (1988-1989)
• 105HP V4 Commercial Loop Charge (1992-1994)
• 115HP V4 Loop Charge (1988-2001)

V6 LOOPER MODELS:
• 150HP V6 Loop Charge (1988-1992)
• 175HP V6 Loop Charge (1988-1992)

ENGINE SPECIFICATIONS:
• Configuration: 90-Degree V4 / V6 Loop Charge
• Standard Bore: 3.600"
• Engine Type: 2-Stroke Loop Charge (Looper)
• Piston Side: Port (Left)

IMPORTANT NOTES:
• Port and starboard pistons are DIFFERENT — this is the PORT side only
• Order matching starboard piston kit separately for complete rebuild
• V4 engines: order 2 port + 2 starboard pistons
• V6 engines: order 3 port + 3 starboard pistons
• 3.600" bore distinguishes these from earlier 3.500" small bore loopers
• Verify OEM part number before ordering
