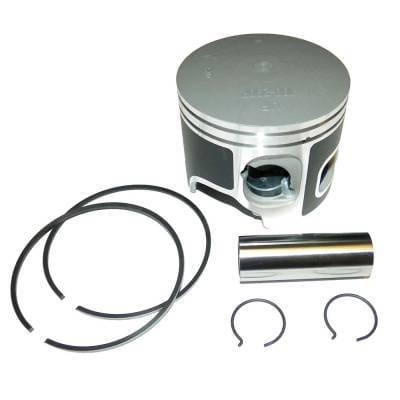

Port Side .030 Over Piston Kit With Rings Compatible With 2000-2013 Yamaha V6 Hpdi 150Hp-200Hp

OEM CROSS-REFERENCE PART NUMBERS (PORT SIDE):
• 68F-11642-00-85 (standard reference)
• 68F-11642-01-85 (standard reference)
• 326764 (wrist pin)
• 326765 (circlip retainers)

SPECIFICATIONS:
• Type: Port Side Piston Kit with Ring Set, Wrist Pin, and Circlip Retainers
• Size: .030 Oversize
• Bore: 3.574" (90.75mm) (.030 oversize over 3.544" standard)
• Engine: V6 HPDI 2-Stroke Direct Injection
• Displacement: 2.6L (158ci)
• Horsepower: 150HP, 175HP, 200HP
• Side: Port
• Material: Cast Aluminum
• Kit Quantity: 1 Cylinder

COMPATIBILITY:
• 2000-2013 Yamaha Z150HP HPDI V6
• 2000-2013 Yamaha Z175HP HPDI V6
• 2000-2013 Yamaha Z200HP HPDI V6
• V6 requires 3 port + 3 starboard pistons for complete rebuildPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
YAMAHA V6 HPDI OUTBOARD ENGINES (2000-2013):

V6 HPDI 2-STROKE MODELS (3.544" / 90mm BORE):
• Z150HP HPDI V6 2-Stroke (2000-2013)
• Z175HP HPDI V6 2-Stroke (2000-2013)
• Z200HP HPDI V6 2-Stroke (2000-2013)
• LZ150HP HPDI V6 2-Stroke (2000-2013)
• LZ200HP HPDI V6 2-Stroke (2000-2013)

ENGINE SPECIFICATIONS:
• Configuration: V6 2-Stroke HPDI (High Pressure Direct Injection)
• Standard Bore: 3.544" (90mm)
• Displacement: 2.6L (158ci)
• Engine Type: 2-Stroke Direct Injection

IMPORTANT NOTES:
• Port and starboard pistons may differ — verify correct side
• V6 engine: order 3 port + 3 starboard kits for complete rebuild
• 3.544" (90mm) bore — verify bore size matches your engine
• Verify OEM part number before ordering
