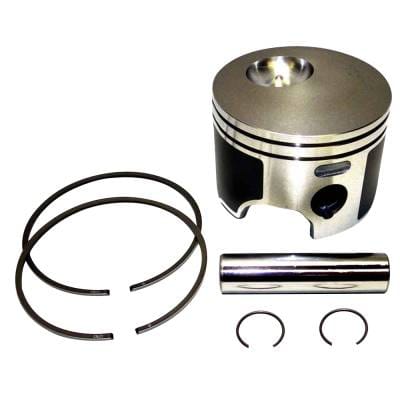

Port Side .020 Over Piston Kit With Rings Compatible With 2004-2012 Johnson Evinrude V6 E-Tec Direct

OEM CROSS-REFERENCE PART NUMBERS (PORT SIDE):
• 5007036 (port piston reference)
• 5007541
• 5007039 (starboard .030 OS reference)
• 5000820 (ring set)
• 326764 (wrist pin)
• 326765 (circlip retainers)

SPECIFICATIONS:
• Type: Port Side Piston Kit with Ring Set, Wrist Pin, and Circlip Retainers
• Size: .020 Oversize
• Bore: 3.620" (.020 oversize over 3.600" standard)
• Engine: V6 60-Degree E-TEC Direct Injection 2-Stroke
• Horsepower: 150HP, 175HP, 200HP, 225HP, 250HP, 300HP
• Side: Port (Left)
• Material: Cast Aluminum
• Kit Quantity: 1 Cylinder

COMPATIBILITY:
• 2004-2012 Johnson/Evinrude 150HP V6 E-TEC
• 2004-2012 Johnson/Evinrude 175HP V6 E-TEC
• 2004-2012 Johnson/Evinrude 200HP V6 E-TEC
• 2006-2012 Johnson/Evinrude 225HP V6 E-TEC
• 2006-2012 Johnson/Evinrude 250HP V6 E-TEC
• 2008-2012 Johnson/Evinrude 300HP V6 E-TEC
• Port side pistons only — requires matching starboard pistons for complete rebuildPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
JOHNSON/EVINRUDE V6 E-TEC OUTBOARD ENGINES (2004-2012):

V6 E-TEC DIRECT INJECTION MODELS:
• 150HP V6 E-TEC (2004-2012)
• 175HP V6 E-TEC (2004-2012)
• 200HP V6 E-TEC (2004-2012)
• 225HP V6 E-TEC (2006-2012)
• 250HP V6 E-TEC (2006-2012)
• 300HP V6 E-TEC (2008-2012)

ENGINE SPECIFICATIONS:
• Configuration: 60-Degree V6 E-TEC Direct Injection
• Standard Bore: 3.600"
• Engine Type: 2-Stroke E-TEC Direct Injection
• Piston Side: Port (Left)

IMPORTANT NOTES:
• Port and starboard pistons are DIFFERENT — this is the PORT side only
• Order matching starboard piston kit separately for complete rebuild
• V6 engines: order 3 port + 3 starboard pistons
• 3.600" bore — verify bore size matches your engine
• Fits E-TEC direct injection models only — does NOT fit carbureted or Ficht
• Verify OEM part number before ordering
