Port Piston Kit With Rings Compatible With 2003-2015 Yamaha 225Hp 250Hp Hpdi 3.3L V6 Outboard Z Lz

OEM CROSS-REFERENCE PART NUMBERS:
• 60V-11631-01-85
• 60V-11636-01-00
• 60V-11642-01-85
• 60V-11646-01-00
• 6D0-11631-00-85
• 6D0-11631-02-84
• 6D0-11631-02-85
• 6D0-11636-00-00
• 6D0-11636-01-00
• 6D0-11642-00-85
• 6D0-11642-01-85

SPECIFICATIONS:

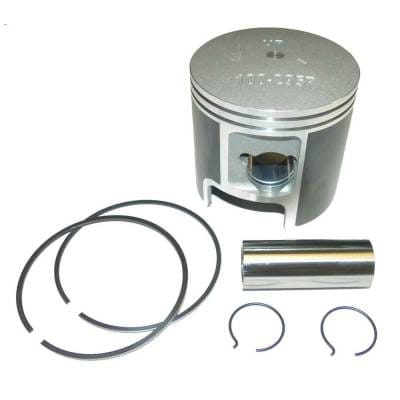

• Type: Port Side Piston Kit with Rings, Wrist Pin, and Pin Clips
• Oversize: Standard (no oversize)
• Standard Bore: 3.660"
• Finished Bore: 3.660"
• Configuration: V6 76-Degree
• Engine Type: 2-Stroke HPDI (High Pressure Direct Injection)
• Displacement: 3.3L (3352cc)
• Horsepower: 200HP, 225HP, 250HP, 300HP
• Material: Cast Aluminum Alloy
• Kit Quantity: 1 Cylinder (order 3 for port bank, 6 for complete V6)

COMPATIBILITY:
• 2006-2012 Yamaha Z/LZ/VZ 200HP HPDI 3.3L V6
• 2003-2015 Yamaha Z/LZ/VZ 225HP HPDI 3.3L V6
• 2003-2015 Yamaha Z/LZ/VZ 250HP HPDI 3.3L V6
• 2004-2009 Yamaha Z/LZ 300HP HPDI 3.3L V6
• All shaft lengths and control variantsPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
YAMAHA HPDI 3.3L V6 2-STROKE OUTBOARD ENGINES (2003-2015):

200HP HPDI MODELS:
• Yamaha Z200 HPDI 3.3L V6 (2006-2012)
• Yamaha LZ200 HPDI 3.3L V6 (2006-2012)
• Yamaha VZ200 HPDI 3.3L V6 (2006-2012)
• All 20-inch and 25-inch shaft lengths

225HP HPDI MODELS:
• Yamaha Z225 HPDI 3.3L V6 (2003-2015)
• Yamaha LZ225 HPDI 3.3L V6 (2003-2015)
• Yamaha VZ225 HPDI 3.3L V6 (2003-2015)
• All 20-inch and 25-inch shaft lengths

250HP HPDI MODELS:
• Yamaha Z250 HPDI 3.3L V6 (2003-2015)
• Yamaha LZ250 HPDI 3.3L V6 (2003-2015)
• Yamaha VZ250 HPDI 3.3L V6 (2003-2015)
• All 20-inch and 25-inch shaft lengths

300HP HPDI MODELS:
• Yamaha Z300 HPDI 3.3L V6 (2004-2009)
• Yamaha LZ300 HPDI 3.3L V6 (2004-2009)
• All 20-inch and 25-inch shaft lengths

ENGINE SPECIFICATIONS:
• Configuration: 76-Degree V6
• Displacement: 3.3L (3352cc)
• Bore x Stroke: 3.660" x 3.228"
• Fuel System: HPDI (High Pressure Direct Injection)
• Engine Type: 2-Stroke

NOTES:
• This is a PORT SIDE piston kit
• Kit is for ONE cylinder — order 3 for complete port bank rebuild
• Order 6 total (3 port + 3 starboard) for a complete V6 powerhead rebuild
• Verify OEM part number before ordering
