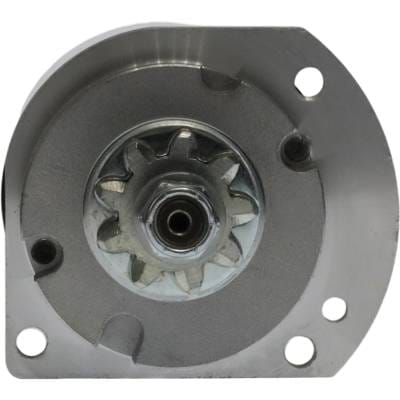

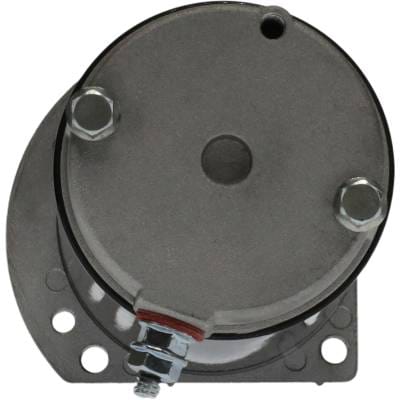

Pmdd Starter Motor 12V Ccw Compatible With Kohler 48-098-02 45-098-04 48-098-04 A277599 A277214

OEM PART NUMBERS:
• Kohler: A277214
• Kohler: A277599
• Kohler: 48-098-04, 48-098-04-S
• Kohler: 45-098-04, 45-098-05
• Kohler: 48-098-02, 48-098-01, 48-098-05
• Kohler: 41-098-05
• John Deere: AM34753, AM37725
• Bobcat: 6512287

SPECIFICATIONS:
• Product: PMDD Starter Motor
• Voltage: 12 Volts DC
• Rotation: Counterclockwise
• Teeth: 9 on Drive Gear
• Gear OD: 36.5mm
• Field Case: 129.2mm Length
• Mounting: Three 5/16-18 Threaded + One 6.6mm Unthreaded
• Weight: 7.39 lbs
• Condition: NewPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
KOHLER STARTER APPLICATION CHART:

K-482 (18HP Twin Air-Cooled):
• Displacement: 782cc (48 cu.in.)
• Cylinder Bore: 82.6mm (3.25 inches)
• Piston Stroke: 73.0mm (2.87 inches)
• Configuration: Horizontally Opposed Twin
• Cycle: 4-Stroke, Air-Cooled
• Lubrication: Full Pressure with Oil Filter

K-532 (20HP Twin Air-Cooled):
• Displacement: 868cc (53 cu.in.)
• Cylinder Bore: 85.7mm (3.37 inches)
• Piston Stroke: 76.2mm (3.0 inches)
• Configuration: Horizontally Opposed Twin

K-582 (23HP Twin Air-Cooled):
• Displacement: 950cc (58 cu.in.)
• Cylinder Bore: 88.9mm (3.5 inches)
• Piston Stroke: 76.2mm (3.0 inches)
• Configuration: Horizontally Opposed Twin

Command PRO CS Series:
• CS4 (4HP) and CS6 (6HP) - Spec 9615xx and 9715xx
• Single Cylinder OHV, Horizontal Shaft

Equipment Applications by Year:
• 1975: John Deere 400 (19.9HP Kohler)
• 1976: John Deere 400, Bobcat 520 (K-582S)
• 1977: John Deere 400, Bobcat 520, Bobcat 530 (K-582S)
• 1978: John Deere 400, Bobcat 530
• 1979: John Deere 400, Bobcat 530
• 1980: John Deere 400, Bobcat 530
• 1981: John Deere 400, Bobcat 530, Bobcat 540 (K-582S)
• 1982: John Deere 400, Bobcat 540
• 1983-1986: Bobcat 540
