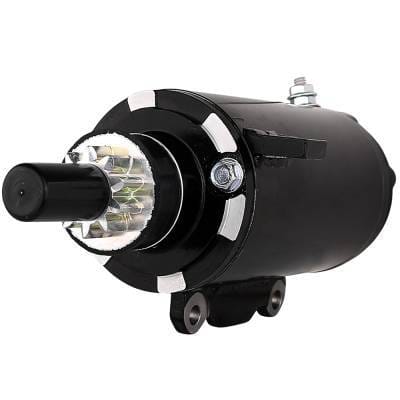

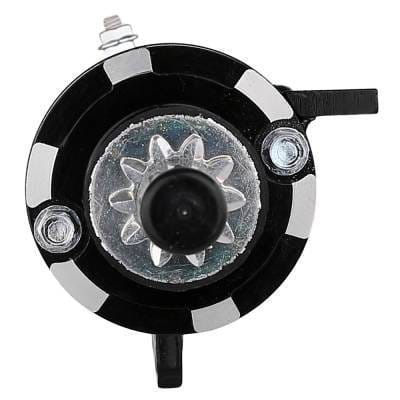

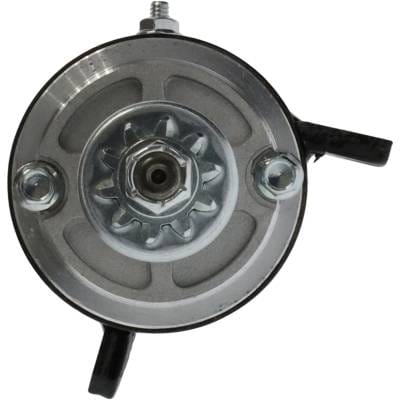

Pmdd Marine Starter Motor 12 Volt 10 Tooth Ccw Compatible With Omc Outboard 585057 585196 586282 V4

OEM PART NUMBERS:
• OMC/BRP: 585057, 585196, 586282, 586283, 385529, 386465, 389380, 389954, 391554, 585051
• Prestolite: POC4001, 20513506TBA, 46-2119, 46-2399, MGL4109, MKW4001
• Sierra Marine: 18-5625, 18-5634, 18-5647
• API Marine: MOT2003, MOT2003N
• ARCO Marine: 5372

UNITED TECHNOLOGIES PART NUMBERS:
• 0139940-M030SM, 0228940-M030SM, 0246540-M030SM, 0246640-M030SM
• 139940, 1791640-M030SM, 1791740-M030SM, 2020740
• 2070240-M030SM, 2070329-M030SM, 2070340-M030SM
• 5704740-M030SM, 5722940-M030SM, 5953540-M030SM
• POC4001, SM01399, SM02289, SM02465, SM02466
• SM17916, SM17917, SM17919, SM20207, SM20702, SM20703
• SM57047, SM59535, SMH12C41

SPECIFICATIONS:
• Type: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V DC
• Rotation: CCW (Counterclockwise)
• Teeth: 10
• Gear OD: 32.3mm (1.272")
• Mounting Ear 1: 8.0mm ID Unthreaded
• Mounting Ear 2: 8.0mm ID Unthreaded
• Mounting Ear 3: 10.1mm ID Unthreaded
• Field Case Length: 4.78" (121.4mm)
• Weight: 7.68 lbs (3.49 kg)
• SAE J1171 Marine Ignition Protection Certified
• 1-Piece Starter Drive
• Condition: NewPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
EVINRUDE / JOHNSON / OMC OUTBOARD APPLICATIONS:

80HP V4:
• 1993 Evinrude 80HP | Johnson 80HP | OMC 80HP

85HP V4 Crossflow (1.6L / 99.6 CI):
• 1964-1979 Evinrude E85 | Johnson J85
• 1980 Evinrude E85ML/TL/TX | Johnson J85ML/TL/TX
• 1991-1995 Evinrude E85MLEI | Johnson J85MLEI

88HP V4 Crossflow:
• 1987-1996 Evinrude E88MSL | Johnson J88MSL

90HP V4 Crossflow:
• 1981-1998 Evinrude E90 (Various) | Johnson J90 (Various)

100HP V4 Crossflow:
• 1969-1997 Evinrude E100 (Various) | Johnson J100 (Various)

110HP-115HP V4 Crossflow:
• 1990-1998 Evinrude E110/Johnson J110 | 1994-1996 E112/J112
• 1969-1998 Evinrude E115 | Johnson J115

120HP-140HP V4 Crossflow:
• 1994-1997 E120/J120 | 1969-1988 E125/J125
• 1969-1976 E135/J135 | 1977-1984 E140/J140

ENGINE:
• V4 Crossflow, 1.6L (99.6 CI)
• United Technologies PMDD Starter System
• 1-Piece Starter Drive
