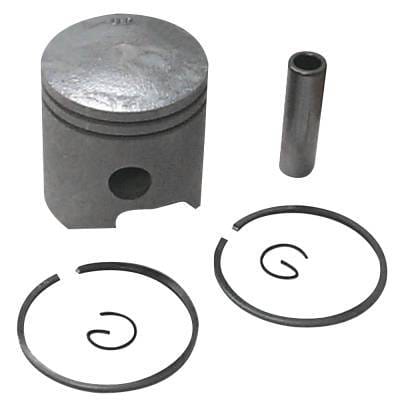

Piston Kit .010 Over With Rings Compatible With 1984-2009 Yamaha Mariner 9.9Hp 15Hp Inline

OEM CROSS-REFERENCE PART NUMBERS:
• 6E7-11635-00-00 (Yamaha .010 OS piston)
• 18-4136 (Sierra cross-reference)
• 7135M
• 8022M
• 8022T
• 326764 (wrist pin)
• 326765 (circlip retainers)

SPECIFICATIONS:
• Type: Piston Kit with Ring Set, Wrist Pin, and Circlip Retainers
• Size: .010 Oversize
• Bore: 2.648" (67.25mm) (.010 oversize over 2.638" standard)
• Engine: Inline 2-Cylinder 2-Stroke Carbureted
• Horsepower: 9.9HP, 15HP
• Piston Type: Symmetrical (fits all cylinders)
• Material: Cast Aluminum
• Kit Quantity: 1 Cylinder

COMPATIBILITY:
• 1984-2009 Yamaha 9.9HP 2-Cylinder 2-Stroke
• 1984-2009 Yamaha 15HP 2-Cylinder 2-Stroke
• 1984-2009 Mariner 9.9HP 2-Cylinder 2-Stroke
• 1984-2009 Mariner 15HP 2-Cylinder 2-Stroke
• Symmetrical piston — order 2 kits for complete 2-cylinder rebuildPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
YAMAHA/MARINER 2-CYLINDER OUTBOARD ENGINES (1984-2009):

2-CYLINDER 2-STROKE MODELS (2.638" / 67mm BORE):
• 9.9HP 2-Cylinder 2-Stroke (1984-2009)
• 15HP 2-Cylinder 2-Stroke (1984-2009)

YAMAHA MODELS:
• Yamaha 9.9D / 9.9F / 9.9MH (1984-2009)
• Yamaha 15D / 15F / 15MH (1984-2009)

MARINER MODELS:
• Mariner 9.9HP 2-Cylinder (1984-2009)
• Mariner 15HP 2-Cylinder (1984-2009)

ENGINE SPECIFICATIONS:
• Configuration: Inline 2-Cylinder 2-Stroke
• Standard Bore: 2.638" (67mm)
• Engine Type: 2-Stroke Carbureted

IMPORTANT NOTES:
• Symmetrical piston — same piston fits all cylinders
• 2-Cylinder engine: order 2 kits for complete rebuild
• 2.638" (67mm) bore — verify bore size matches your engine
• Verify OEM part number before ordering
