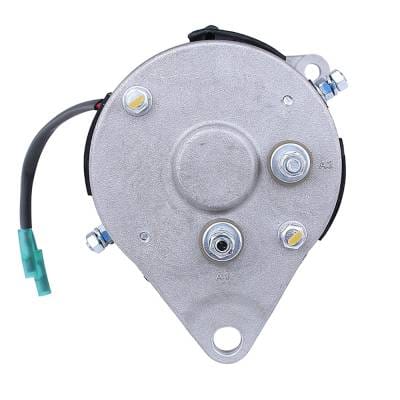

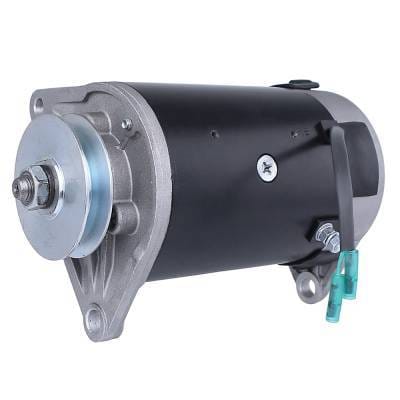

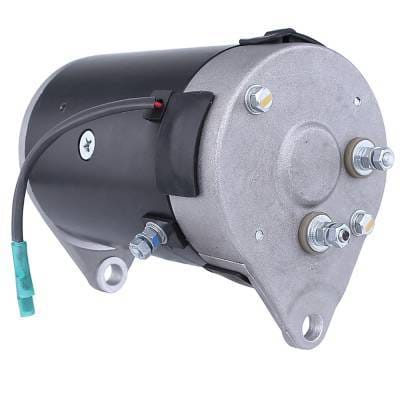

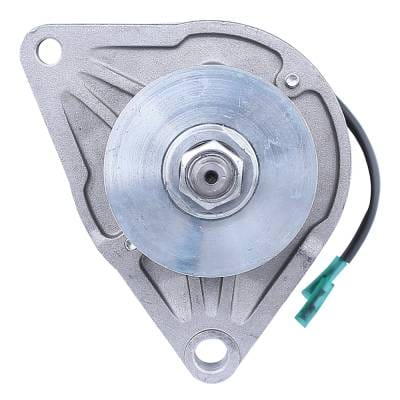

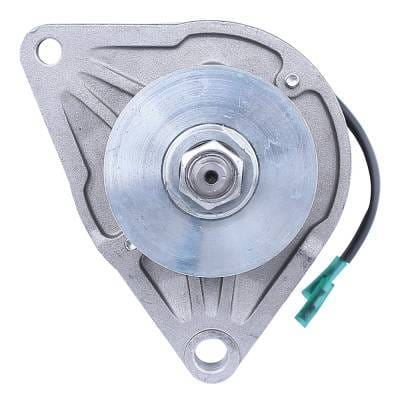

New Starter Generator Compatible With Yamaha Golf Cart G1 2-Cycle 1978 1979 1980 1981 1982

HITACHI GSB107-02YAMAHA 10-81100-10-00, J10-81100-10-00UNIT TYPE: YAMAHA, HITACHI
VOLTAGE: 12
AMPERAGE 22
ROTATION: REVERSIBLE
FIELD HSG OD: 113MM / 4.449IN
OVERALL LENGTH: 246MM / 9.685IN
SHAFT OD: 17MM / 0.669IN
SHAFT NOTES: WITH KEYWAY
TERMINAL 1 SIZE: M6-1.0
TERMINAL 2 SIZE: M6-1.0
TERMINAL 3 SIZE: M6-1.0
TERMINAL 4 SIZE: M6-1.0
WEIGHT: 18.1 LBS / 8.23 KGNOTES:
INCLUDES HARNESS WITH 2 BULLET TERMINALS(4 TERMINAL 2 WIRE)PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
PLEASE VERIFY YOUR OEM PART NUMBER FROM YOUR ORIGINAL UNIT TO HELP ENSURE FITMENT.

1978-88 YAMAHA G1 GOLF CARTS W2-CYCLE ENGINES W2-CYCLE
