New Hub Assembly Compatible With Chrysler Pacifica 3.5L 3.8L 2004 2005 2006 By Part Numbers Ha590208

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

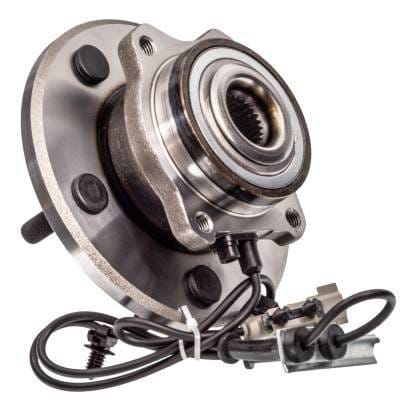

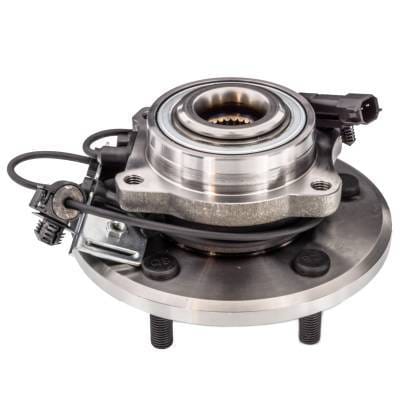

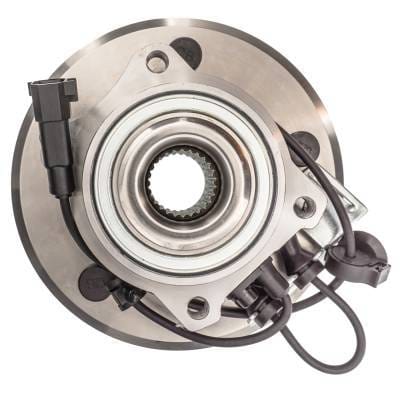

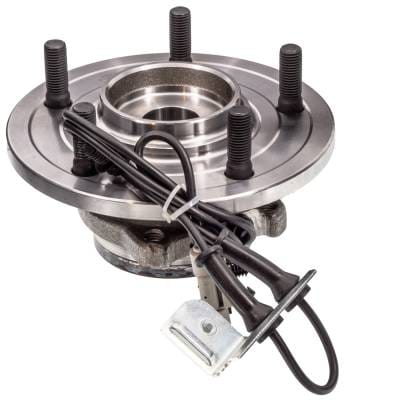

PRODUCT TYPE: HUB ASSEMBLY

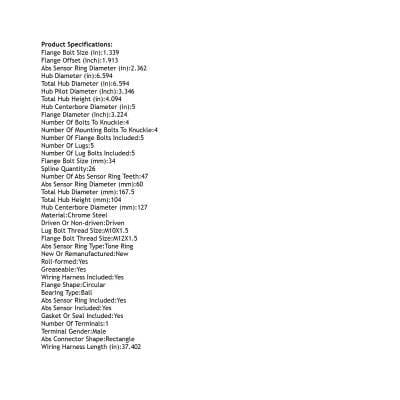

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.362
ABS SENSOR RING DIAMETER (MM): 60
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.339
FLANGE BOLT SIZE (MM): 34
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 3.224
FLANGE OFFSET (INCH): 1.913
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5
HUB CENTERBORE DIAMETER (MM): 127
HUB DIAMETER (IN): 6.594
HUB PILOT DIAMETER (INCH): 3.346
LUG BOLT THREAD SIZE: M10X1.5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 26
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 6.594
TOTAL HUB DIAMETER (MM): 167.5
TOTAL HUB HEIGHT (IN): 4.094
TOTAL HUB HEIGHT (MM): 104
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 37.402

REPLACES:
AUTOPART INTERNATIONAL: 1411-44707
BCA: WE60482
CENTRIC PARTS: 40263001E
GSP: 124201
MEVOTECH: H513201
MOOG HUB ASSEMBLIES: 513201
NAPA: PBR930355

APPLICATIONS:
CHRYSLER PACIFICA (2004-2006)
