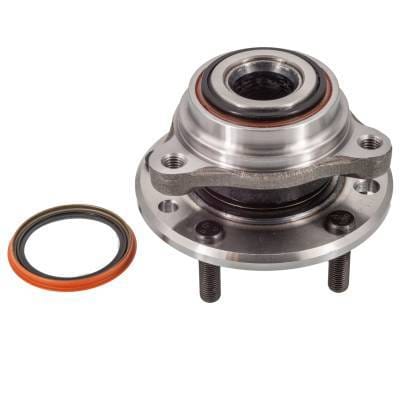

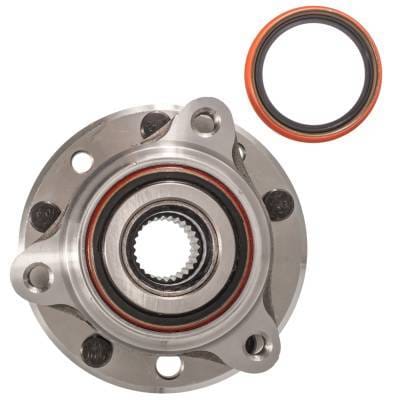

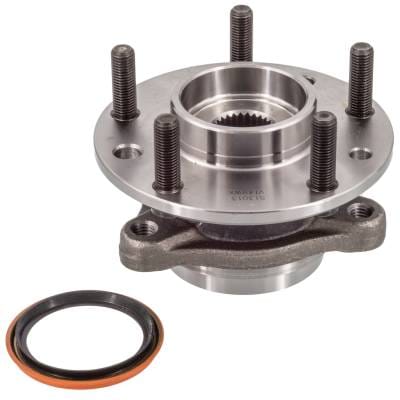

New Hub Assembly Compatible With Buick Cadillac Oldsmobile Chevrolet Gmc Riviera Eldorado Toronado

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

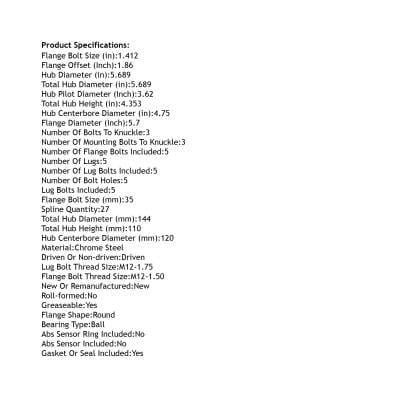

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.412
FLANGE BOLT SIZE (MM): 35
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 5.7
FLANGE OFFSET (INCH): 1.86
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.75
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 5.689
HUB PILOT DIAMETER (INCH): 3.62
LUG BOLT THREAD SIZE: M12-1.75
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: NO
SPLINE QUANTITY: 27
TOTAL HUB DIAMETER (IN): 5.689
TOTAL HUB DIAMETER (MM): 144
TOTAL HUB HEIGHT (IN): 4.353
TOTAL HUB HEIGHT (MM): 110

REPLACES:
OTHER PART NUMBER: PT513013K
SKF: BR930052K
TIMKEN: 513013K
AUTOPART INTERNATIONAL: 1411-45309
MOOG HUB ASSEMBLIES: 513013K
NAPA: PBR930052K

APPLICATIONS:
BUICK RIVIERA (1979-1985)
CADILLAC ELDORADO (1979-1985)
OLDSMOBILE TORONADO (1979-1985)
CADILLAC SEVILLE (1980-1985)
CHEVROLET S10 BLAZER (1983-1990)
CHEVROLET S10 (1983-1990)
GMC S15 JIMMY (1983-1990)
GMC S15 (1983-1990)
CHEVROLET CORVETTE (1984-1996)
