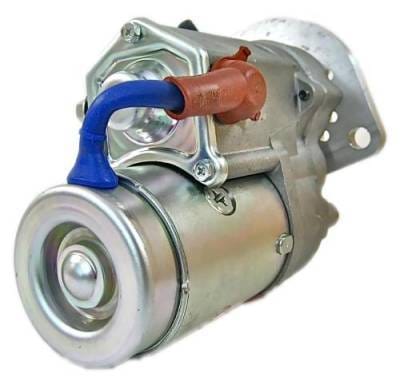

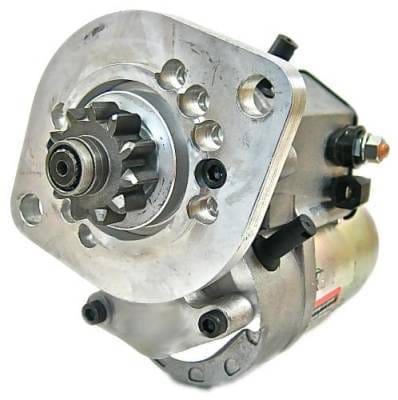

New 12V 11T Cw Starter Compatible With Rhino 3320 3324 4134 Hercules 2282 2284 Tractor Qd1247a

QD1247A, QD1328, 032101-3045
TYPE: OSGR
VOLTAGE: 12 VOLTS
ROTATION: CW
TEETH/SPLINES: 11 TEETH/SPLINES
PINION/SPLINES OD: 40.8MM / 1.606IN
MOUNTING HOLE 1: 12.5MM ID UNTHREADED
MOUNTING HOLE 2: 12.5MM ID UNTHREADED
APPROXIMATE WEIGHT: 12.33 LBS / 5.60 KG
PILOT HOLE WIDTH: 3.25 INCHES
MOUNTING HOLE CENTER TO CENTER: 4.75 INCHES
GEAR REDUCTION STARTER HIGH TORQUE STARTER FOR SUB-ZERO TEMPERATURESPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
PLEASE VERIFY YOUR OEM PART NUMBER FROM YOUR ORIGINAL UNIT TO HELP ENSURE FITMENT.

RHINO 3320 3324 4134 TRACTOR
HERCULES 2282 2284M TRACTOR
30-50 HP SL2100, TY95 ENGINES
