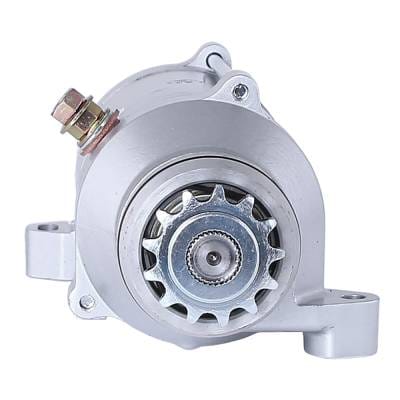

Motorcycle Starter Motor Compatible With Honda Gl1100 Gold Wing Aspencade 31200-463-405

HONDA OEM PART NUMBERS:
• 31200-463-008
• 31200-463-405

STARTER REFERENCE:
• SM224 (SM2-24)

SPECIFICATIONS:
• Unit Type: SM224 (SM2-24)
• Starter Type: PMDD
• Power Output: 0.6kW
• Voltage: 12V
• Rotation: CW (Clockwise)
• Drive Teeth: 13
• Teeth/Splines: 31
• Pinion OD: 13.6mm / 0.535in
• Gear OD: 38.8mm / 1.528in
• Body Length: 187.4mm / 7.378in
• Registry OD: 45.9mm / 1.807in
• Mounting Hole 1: 6.6mm ID Unthreaded
• Mounting Hole 2: 6.6mm ID Unthreaded (Oblong 6.6 x 13.1mm)
• Mounting Hole Distance: 144mm / 5.6in
• Brushes: 4-Brush Configuration
• Weight: 5.575 lbs / 2.53 kg

FITS HONDA MOTORCYCLES:
• GL1100 Gold Wing 1084cc (1980-1983)
• GL1100A Gold Wing Aspencade 1084cc (1982-1983)
• GL1100D Gold Wing Deluxe 1084cc (1980-1982)
• GL1100I Gold Wing Interstate 1084cc (1980-1983)PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
HONDA GL1100 GOLD WING MOTORCYCLES:

GL1100 GOLD WING:
• Honda GL1100 Gold Wing 1084cc - 1980
• Honda GL1100 Gold Wing 1084cc - 1981
• Honda GL1100 Gold Wing 1084cc - 1982
• Honda GL1100 Gold Wing 1084cc - 1983

GL1100A GOLD WING ASPENCADE:
• Honda GL1100A Gold Wing Aspencade 1084cc - 1982
• Honda GL1100A Gold Wing Aspencade 1084cc - 1983

GL1100D GOLD WING DELUXE:
• Honda GL1100D Gold Wing Deluxe 1084cc - 1980
• Honda GL1100D Gold Wing Deluxe 1084cc - 1981
• Honda GL1100D Gold Wing Deluxe 1084cc - 1982

GL1100I GOLD WING INTERSTATE:
• Honda GL1100I Gold Wing Interstate 1084cc - 1980
• Honda GL1100I Gold Wing Interstate 1084cc - 1981
• Honda GL1100I Gold Wing Interstate 1084cc - 1982
• Honda GL1100I Gold Wing Interstate 1084cc - 1983

ENGINE DETAILS:
• Engine: 1084cc Flat-Four Cylinder
• Ignition System: PMDD Starter System
• Starter Model: SM224 (SM2-24)
• Starter Type: PMDD Permanent Magnet Direct Drive
• 4-Brush Permanent Magnet Construction

INSTALLATION NOTES:
• Direct bolt-on replacement for OEM starter
• Mounting Hole #2 is oblong at 6.6mm x 13.1mm
• Mounting hole distance: 144mm / 5.6in
• CW rotation when viewed from drive end
• 13-tooth drive pinion engages flywheel ring gear
• Verify OEM part number before ordering
