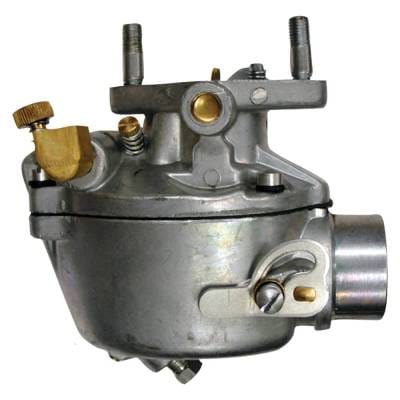

Marvel Schebler Style Carburetor Compatible With Case International Harvester Farmall A Av B Bn C

CASE IH PART NUMBERS:
• 352376R92 / 354184R93 / 354184R93M
• 355485R91 / 373957R91
• 352047R91 / 372985R91
• 52499DB / 69401D / 69402D / 69404D

MARVEL SCHEBLER:
• TSX156 / TSX157 / TSX319 / TSX333

ZENITH:
• 9748 / 9749 / 9752 / 10514 / 10514A

OTHER:
• IHS420

SPECIFICATIONS:
• Type: Marvel Schebler Style Updraft Carburetor
• Mounting Bolt Spacing: 2-3/8" Center to Center
• Throttle Body Throat: 1-1/16" Diameter
• Choke Air Horn (Air Inlet): 1-1/2" OD
• Fuel Inlet: 1/8" NPT

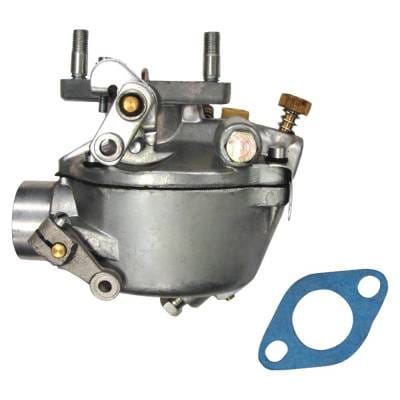

• Includes: Carburetor, Mounting Gasket
• Condition: New

ADJUSTMENT TIPS:
• Set idle screw 1-1/4 turns off stop pin
• Set idle adjusting needle 1 full turn off seat
• Set power adjusting needle 1 full turn off seat
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
IH FARMALL A SERIES (1939-1954):
• Farmall A (1939-1947) - IH C113 Gas, 4-Cyl OHV, 113ci (1.9L), 3.00x4.00", ~16-20HP, 1400 RPM
• Farmall AV (1939-1947) - IH C113 Gas, High-Clearance Variant, 5" Extra Ground Clearance
• Farmall Super A (1947-1954) - IH C113 Gas, 4-Cyl OHV, 113ci, w/Hydraulic Lift

IH FARMALL B SERIES (1939-1947):
• Farmall B (1939-1947) - IH C113 Gas, 4-Cyl OHV, 113ci, Centered Engine/Offset Seat
• Farmall BN (1939-1947) - IH C113 Gas, Narrow Front Variant

IH FARMALL C SERIES (1948-1954):
• Farmall C (1948-1951) - IH C113 Gas, 4-Cyl OHV, 113ci, ~20HP, 1400 RPM
• Farmall Super C (1951-1954) - IH C123 Gas, 4-Cyl OHV, 123ci (2.0L), 3.13x4.00", 26HP

ENGINE SPECIFICATIONS:
• IH C113: 113ci (1.9L), 4-Cyl OHV Inline, 3.00x4.00" Bore/Stroke, 6:1 Compression, 1400 RPM
• IH C123: 123ci (2.0L), 4-Cyl OHV Inline, 3.13x4.00" Bore/Stroke, 6:1 Compression, 1400 RPM
• Fuel: Gasoline / Kerosene / Distillate
• Firing Order: 1-3-4-2
• Oil Capacity: 5 Quarts

CARBURETOR SPECIFICATIONS:
• Type: Marvel Schebler Style Updraft
• Mounting: 2-3/8" Center to Center
• Throttle Throat: 1-1/16" Diameter
• Choke Air Horn: 1-1/2" OD
• Fuel Inlet: 1/8" NPT
• Gasket Included
• Replaces Marvel Schebler and Carter Carburetors
