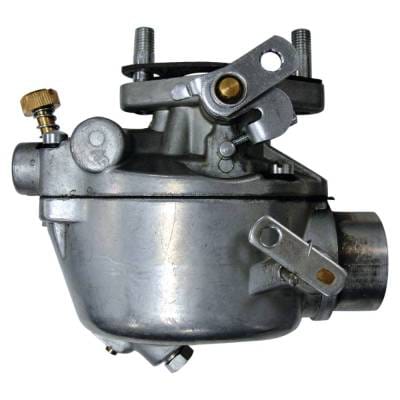

Marvel Schebler Carburetor Compatible With Massey Ferguson Te20 To20 To30 Continental Z120 Z129

MASSEY FERGUSON OEM:
• 181643M91 / 181644M91
• 517903M91 / 517903M1
• 773322M91
• 181944M91

MARVEL SCHEBLER CARBURETOR NUMBERS:
• TSX248 / TSX272 / TSX312
• TSX361 / TSX361A / TSX458
• TSXU831

ADDITIONAL CROSS-REFERENCES:
• A538769 / MFS138 / R0345 / S43061

SPECIFICATIONS:
• Type: Marvel Schebler Style Updraft Carburetor
• Mounting Bolt Spacing: 2-3/8" Center to Center
• Throttle Bore Throat: 1-1/16" Diameter
• Choke Air Horn OD: 1-33/64" (1.515")
• Fuel Inlet: 1/8" NPT

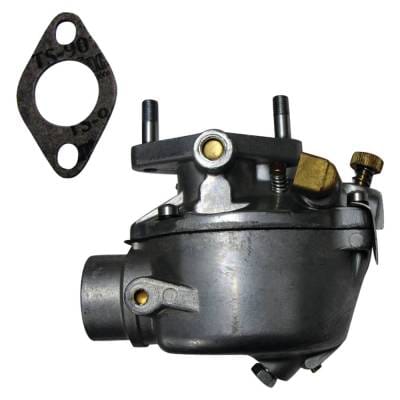

• Gasket: Included
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
FERGUSON / MASSEY FERGUSON TRACTORS:
• Ferguson TE20 (1946-1956) - Built by Standard Motor Company, England
- Continental Z120 4-Cyl OHV Gas Engine
- 120ci (2.0L) Displacement, 3.1875" Bore x 3.75" Stroke
- ~20HP at Governed Speed
- Wet Cylinder Sleeves, Pressurized Lubrication
- 4-Speed Transmission, Ferguson 3-Point Hitch
- Variants: TEA20 (Gas), TED20 (Diesel), TEF20 (Diesel)

• Ferguson TO20 (1948-1951) - Built in Detroit, Michigan, USA
- Continental Z120 4-Cyl OHV Gas Engine
- 120ci (2.0L) Displacement, 3.1875" Bore x 3.75" Stroke
- ~20HP at Governed Speed
- 4-Speed Transmission, Ferguson 3-Point Hitch
- Known Issue: Z120 Blocks Susceptible to Cracking Between Cylinder Walls

• Ferguson TO30 (1951-1954) - Built in Detroit, Michigan, USA
- Continental Z129 4-Cyl OHV Gas Engine
- 129ci (2.1L) Displacement, 3.1875" Bore x 4.0625" Stroke
- ~26HP at Governed Speed
- 4-Speed Transmission, Ferguson 3-Point Hitch
- Increased Stroke Over Z120 for Greater Torque and Horsepower
