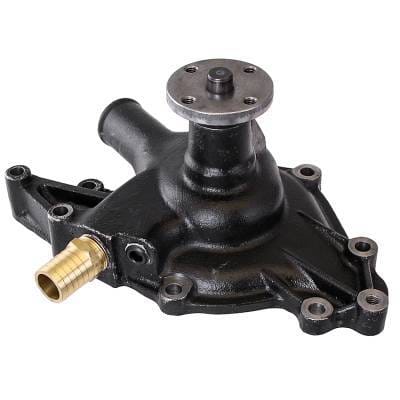

Marine Water Pump Compatible With 1967-1989 Chrysler V8 318 360 5.2L 5.9L Small Block Inboard Lm318

OEM PART NUMBERS:

CHRYSLER MARINE:
• 3004886 (Primary Part Number)
• 3745985 (Cross Reference)
• 3619859 (Cross Reference)

SPECIFICATIONS:
• Type: Bi-Directional Circulating Water Pump
• Shaft: Stainless Steel
• Pulley: Stainless Steel
• Hub: Stainless Steel
• Impeller: Brass (Bi-Directional)
• Hardware: Brass/Stainless Steel
• Seal: Stainless/Ceramic
• Bearings: Heavy Duty
• Finish: Powder Coated
• Includes: Mounting Gasket
• Weight: Approximately 13 lbs
• Rotation: Bi-Directional (Standard CW and Reverse CCW)

FITS CHRYSLER MARINE V8 ENGINES:
• 273ci (4.5L) V8 - Model M273A - 1967-1973
• 318ci (5.2L) V8 - Models M318, LM318, LM318B - 1967-1989
• 340ci (5.6L) V8 - Model M340 - 1968-1973
• 360ci (5.9L) V8 - Model M360 - 1974-1989

CHRYSLER FURY MARINE ENGINE SERIES:
• Fury 190 (Model M318A) - 190hp
• Fury 195 (Model M318B) - 195hp
• Fury 210 (Model M318C) - 210hp
• Fury 235 (Model M318D) - 235hp

BOAT BRANDS:
• Trojan, Chris-Craft, Wellcraft, Silverton, Stamas, Luhrs, Pacemaker, Century, Lyman, Viking, Egg Harbor

NOTES:
• Marine water pump only - not for automotive use
• Bi-directional design works on both standard rotation (CW) and reverse rotation (CCW) engines
• Chrysler LA-series small block V8 marine inboard engines only
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Nickel which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
CHRYSLER MARINE INBOARD V8 ENGINES:

273ci (4.5L) V8 - LA SERIES:
• Chrysler Marine M273A - 273ci 4.5L V8 Inboard - 1967, 1968, 1969, 1970, 1971, 1972, 1973
• Standard rotation (CW) and reverse rotation (CCW) configurations

318ci (5.2L) V8 - LA SERIES:
• Chrysler Marine M318 - 318ci 5.2L V8 Inboard
• Chrysler Marine LM318 - 318ci 5.2L V8 Inboard
• Chrysler Marine LM318B - 318ci 5.2L V8 Inboard
• Chrysler Marine Fury 190 (Model M318A) - 190hp
• Chrysler Marine Fury 195 (Model M318B) - 195hp
• Chrysler Marine Fury 210 (Model M318C) - 210hp
• Chrysler Marine Fury 235 (Model M318D) - 235hp
• Years: 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989
• Standard rotation (CW) and reverse rotation (CCW) configurations

340ci (5.6L) V8 - LA SERIES:
• Chrysler Marine M340 - 340ci 5.6L V8 Inboard - Approximately 250hp
• Years: 1968, 1969, 1970, 1971, 1972, 1973
• Standard rotation (CW) and reverse rotation (CCW) configurations

360ci (5.9L) V8 - LA SERIES:
• Chrysler Marine M360 - 360ci 5.9L V8 Inboard
• Years: 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989
• Standard rotation (CW) and reverse rotation (CCW) configurations

BOAT BRANDS USING CHRYSLER MARINE INBOARD ENGINES:
• Trojan Boats
• Chris-Craft
• Wellcraft
• Silverton
• Stamas
• Luhrs
• Pacemaker
• Century
• Lyman
• Viking
• Egg Harbor

KEY FEATURES:
• Bi-directional circulating water pump - works on both standard and reverse rotation engines
• Stainless steel shaft, pulley, hub, and hardware
• Brass bi-directional impeller for maximum saltwater corrosion resistance
• Stainless/ceramic seal for long service life
• Heavy duty bearings
• Includes mounting gasket
• Marine water pump only - not for automotive use
• Verify OEM part number from your original unit before ordering
