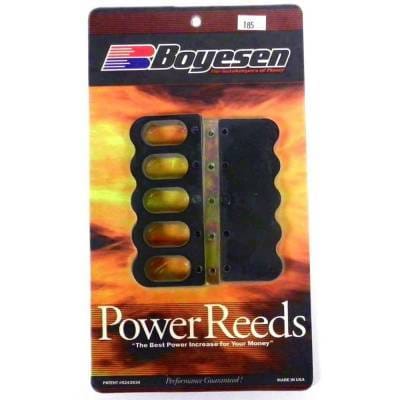

Intake Reed Petals Compatible With Evinrude Johnson V8 300 Hp Small Bore Looper 3.500 Bore

OEM REFERENCE:
• BRP does not sell individual OEM reed petals for V8 engines
• Factory reed petals housed within OEM assemblies:
• Leaf Plate / Reed Block: 389823 / 0389823 (shared V4/V6/V8)
• Reed Valve: 397336 / 0397336
• This aftermarket reed petal kit replaces OEM petals within those assemblies

SPECIFICATIONS:
• Type: Intake Reed Petals / Leaf Valves
• Engine Configuration: V8 (8-Cylinder) 90 Degree
• Bore: 3.500" / Stroke: 2.858"
• Displacement: ~220 Cu.In. / 3.6L (3606cc)
• HP: 300
• Year: 1985
• Design: Small Bore Loop-Charged
• Contents: Full set of reed petals for all eight cages on one engine
• Condition: New

JOHNSON/EVINRUDE V8 APPLICATION:
• V8 3.500" Small Bore Looper 300HP (1985)PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
JOHNSON/EVINRUDE V8 SMALL BORE LOOPER — 3.500" BORE (220CI / 3.6L):
• 300 HP V8 3.500" Bore Small Bore Looper 90° 2-Stroke (1985)

ENGINE SPECIFICATIONS:
• Configuration: V8 (8-Cylinder) 90 Degree
• Bore: 3.500" (88.9mm)
• Stroke: 2.858" (72.6mm)
• Displacement: ~220 Cu.In. / 3606cc / 3.6L
• Design: Loop-Charged (Small Bore)
• Cycle: 2-Stroke
• Construction: Two V4 small bore looper powerheads joined on common crankcase

FITMENT NOTES:
• Fits V8 (8-cylinder) small bore looper 300HP 1985 ONLY
• Does NOT fit V8 big bore looper (3.685" bore) — 250/275/300HP 1988-1995
• Does NOT fit V6 small bore looper (3.500" bore, 200/225HP)
• Does NOT fit V4 small bore looper (3.500" bore, 120/140HP)
• Kit includes: Full set of reed petals for all eight cages on one engine
• The V8 300HP small bore looper was a limited production outboard
