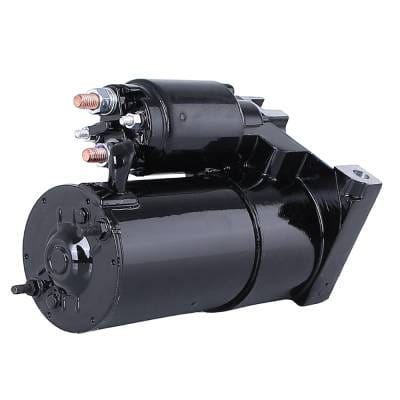

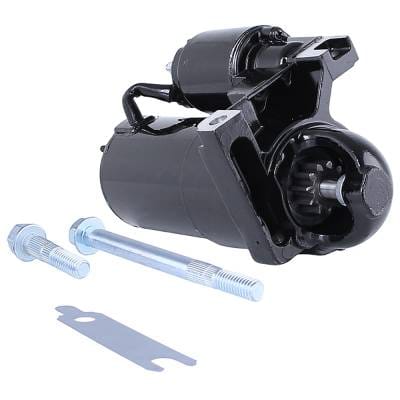

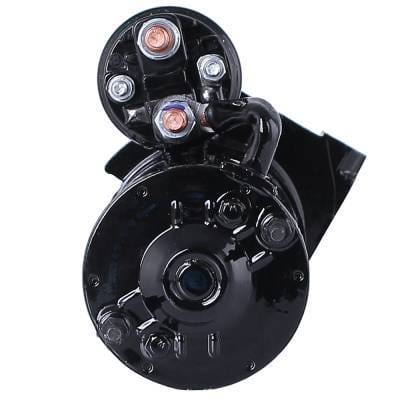

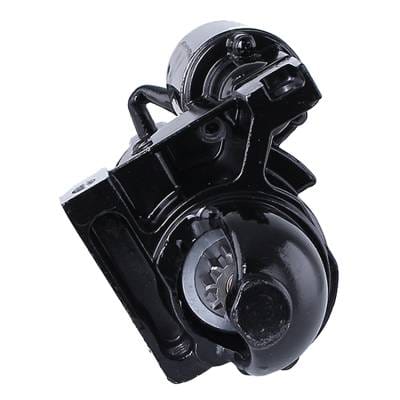

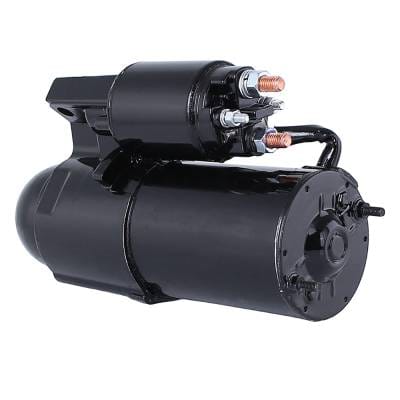

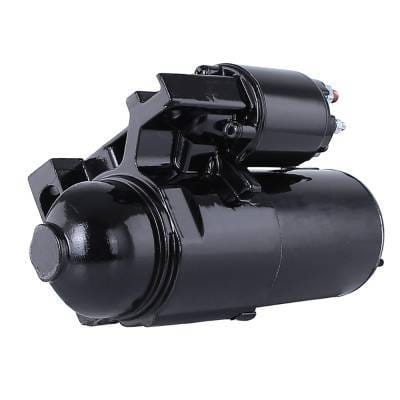

Hyster Forklift Starter 12V Pmgr For H-40Xl H-50Xl H-60Xl S-40Xl S-45Xm S-50Xm S-55Xm S-60Xm S-65Xm

DELCO:
• 10465606
• 9000895

HYSTER:
• 1469603
• 1650426

SPECIFICATIONS:
• Type: Forklift Starter
• Unit: Delco PMGR (Permanent Magnet Gear Reduction)
• Voltage: 12V
• Rotation: Clockwise (CW)
• Tooth Count: 9
• Gear OD: 29.6mm (1.165")
• DE Housing: 371-12135
• Mounting Ear 1: 10.0mm ID Unthreaded
• Mounting Ear 2: 10.0mm ID Unthreaded
• Mounting: Straight Mounting Flange
• Weight: 9.085 lbs (4.13 kg)
• Note: Replaces OE units with 9 tooth drives

COMPATIBLE HYSTER MODELS:
H-Series (XL Models):
• H-40XL (4,000 lb) - GM 3.0L
• H-50XL (5,000 lb) - GM 3.0L
• H-60XL (6,000 lb) - GM 3.0L

S-Series (XL & XM Models):
• S-40XL (4,000 lb) - GM 3.0L
• S-45XM (4,500 lb) - GM 3.0L
• S-50XM (5,000 lb) - GM 3.0L
• S-55XM (5,500 lb) - GM 3.0L
• S-60XM (6,000 lb) - GM 3.0L
• S-60XL (6,000 lb) - GM 2.2L
• S-65XM (6,500 lb) - GM 3.0LPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
HYSTER H-SERIES LIFT TRUCKS (1998-2001):
• H-40XL - 4,000 lb (1.8 ton) capacity, GM 3.0L 181ci gas engine
• H-50XL - 5,000 lb (2.3 ton) capacity, GM 3.0L 181ci gas engine
• H-60XL - 6,000 lb (2.7 ton) capacity, GM 3.0L 181ci gas engine

HYSTER S-SERIES LIFT TRUCKS (1990-2006):
• S-40XL - 4,000 lb (1.8 ton) capacity, GM 3.0L gas engine
• S-45XM - 4,500 lb (2.0 ton) capacity, GM 3.0L 181ci gas engine (1996-2006)
• S-50XM - 5,000 lb (2.3 ton) capacity, GM 3.0L 181ci gas engine (1990-2003)
• S-55XM - 5,500 lb (2.5 ton) capacity, GM 3.0L 181ci gas engine (1990-2003)
• S-60XM - 6,000 lb (2.7 ton) capacity, GM 3.0L gas engine
• S-60XL - 6,000 lb (2.7 ton) capacity, GM 2.2L engine
• S-65XM - 6,500 lb (2.9 ton) capacity, GM 3.0L gas engine

FORKLIFT APPLICATIONS:
• Warehouse operations - Indoor material handling
• Distribution centers - Loading, unloading, stacking
• Manufacturing facilities - Production line support
• Retail stores - Stockroom operations
• Construction sites - Material movement
• Lumber yards - Heavy material handling
• Agricultural operations - Feed, seed, equipment handling
• Cold storage facilities - Refrigerated warehouse operations

ENGINE SPECIFICATIONS:
• GM 3.0L (181 cubic inch) - 4-cylinder inline gas engine
• GM 2.2L - 4-cylinder inline gas engine
• Reliable performance for daily industrial use
• Designed for frequent start/stop cycles

FORKLIFT FEATURES:
• Cushion tire models - Indoor warehouse use
• Pneumatic tire options available - Indoor/outdoor
• LPG (propane) or gasoline fuel systems
• Standard 3-stage masts available
• Side shift capability
• Load capacities: 4,000-6,500 lbs
